EM1206 Programmable IoT Module
The EM1206 is a compact Tibbo BASIC/C-programmable IoT Module with Ethernet, as well as optional Wi-Fi* and 4G/LTE cellular** connectivity. The EM1206 has four UARTs.

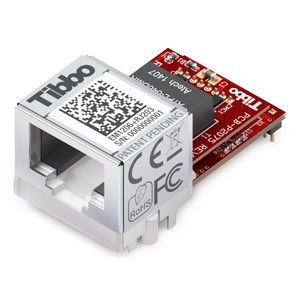

In combination with the RJ203 jack/magnetics front-end (shown), the EM1206 forms a complete programmable Ethernet node occupying only 34.4 x 20mm (1.35 x 0.79") of the host board's space.
The module's potent hardware mix, which also includes the onboard flash memory hosting a hardened fault-tolerant file system, as well as the EEPROM and RTC, has been carefully tailored to address the typical needs of network-enabled control applications. Thus, the EM1206 is especially suitable for "connected" edge products such as sensors, data collectors, meters, and actuators.
Module testing and evaluation can be performed with our EM1206SK starter kit.
* Requires the WA2000 Wi-Fi add-on to be connected externally.
** Requires a standard 4G/LTE modem (i.e., Simcom's SIM7500) to be connected to a UART of the EM1206.
Here is How You Can Use the EM1206
As a Serial-over-IP (SoI)
Device
Serial-over-IP conversion is a large part of what we do, and there is an entire section of our website dedicated to serial converters (a.k.a. "serial device servers"). We offer a free open-source serial-over-IP (SoI) app that turns the EM510 into a full-featured serial-to-IP converter.
Build Your Own
IoT Solution
The EM1206 is programmable in Tibbo BASIC and Tibbo C. Develop your very own IoT solution from scratch or take inspiration from our open-source applications and code samples published in the Code and Apps section.
Key Features
10/100 Base-T Ethernet port (no RJ45/magnetics)
Optional Wi-Fi connectivity (with the WA2000 add-on)
Optional 4G/LTE cellular connectivity (requires an external modem)
1 UART, supports serial, Wiegand, andclock/data streams
17 general-purpose I/O lines (5V-tolerant)
Can drive an externally connected buzze
4 synchronous serial ports with SPI and I2C modes
Supports externally connected LCDs and OLEDs
Supports external matrix and binary output keypads
Onboard RTC (requires external backup power)
1MB flash disk for TiOS, application code, and file system
2048-byte EEPROM
3.3V power
Mates with the RJ203 jack/magnetics front-end
