EM2000 Programmable IoT Module

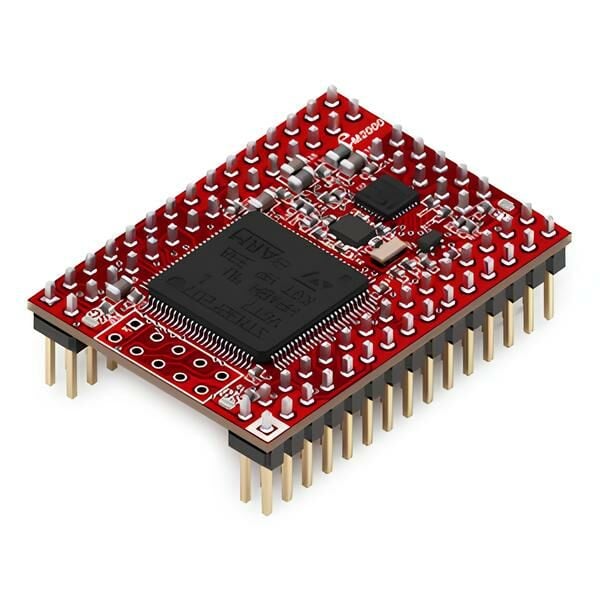

The EM2000 is a full-featured Tibbo BASIC/C-programmable Industrial IoT Module with four UARTs and Ethernet, as well as optional Wi-Fi*, BLE** (Bluetooth Low Energy), and cellular*** connectivity. The module offers substantial speed and functionality improvements over its predecessor — the original EM1000 device.
The module runs Tibbo OS (TiOS), our highly reliable operating system that achieves exceptional stability thanks to radical OS structure simplification, static memory allocation, full ownership and meticulous curation of the code base, as well as complete sandboxing of the user’s application.
The device's capabilities are further enhanced by the onboard flash memory hosting a hardened fault-tolerant file system, as well as the EEPROM and RTC.
The EM2000 has 56 general-purpose I/O lines and can control an externally attached LCD, keypad, buzzer, card readers, serial devices, and other circuitry. Device pins have the standard 2.54mm (100mil) pitch. This makes the module ideal for use not only in production devices but also for prototyping.
Module testing and evaluation can be performed on the EM2000EV board. The EM2001 board, a close relative of the EM2000, is also available.
Here is How You Can Use the EM2000
As a Serial-over-IP (SoI)
Device
Serial-over-IP conversion is a large part of what we do, and there is an entire section of our website dedicated to serial converters (a.k.a. "serial device servers"). We offer a free open-source serial-over-IP (SoI) app that turns the EM510 into a full-featured serial-to-IP converter.
Build Your Own
IoT Solution
The EM2000 is programmable in Tibbo BASIC and Tibbo C. Develop your very own IoT solution from scratch or take inspiration from our open-source applications and code samples published in the Code and Apps section.
Key Features
High-performance ARM CPU(no RJ45/magnetics)
10/100 Base-T Ethernet port (no RJ45/magnetics)
Optional Wi-Fi connectivity(with the WA2000 add-on)
Optional BLE (Bluetooth Low Energy) connectivity (with the WA2000 add-on)
Optional 4G/LTE cellular connectivity (requires an external modem)
4 UARTs support serial, Wiegand, and clock/data streams
56 general-purpose I/O lines (5V-tolerant)
Can drive an externally connected buzzer
4-channel ADC
4 synchronous serial ports with SPI and I2C modes
Supports externally connected LCDs and OLEDs
Supports external matrix and binary output keypads
Onboard RTC (requires external backup power)
1MB flash for TiOS and application code + 1MB for the flash disk file system
2048-byte EEPROM
3.3V power
Prototyping-friendly 2.54mm (100mil) pinpitch
Supports over-the-air (OTA) firmwareupdates (with the WA2000 add-on)
Supported by Cody project generatorStreamlined Deployment With LUIS
Anyone who has ever deployed a device in the field knows that the process often gets stuck over silly little things, like the IP address configuration. Enters the Loadable User Interface System (LUIS), our wireless configuration solution for Tibbo devices.
Equip your TPS system with the WA2000 Wi-Fi/BLE add-on, enable LUIS in your AppBlocks application, and define what settings will be exposed through this interface. A typical list includes the IP address, DHCP, Wi-Fi SSID, password, and other basic parameters.
Now your users will be able to configure these essential settings via a Bluetooth Low Energy (BLE) connection from the LUIS app (iOS, Android, web).
It gets even better: The EM510 also supports over-the-air firmware upgrades via BLE using our Tibbo Updater app (iOS, Android, web)!
