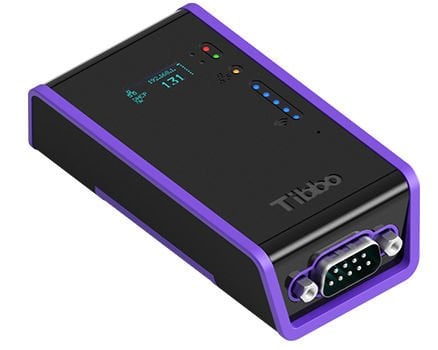

DS1102 Seri-Ethernet Çevirici
DS1102 Programmable 3-channel
RS232/422/485 Controller
The DS1102 is a compact Tibbo BASIC/C-programmable industrial controller with Ethernet and optional Wi-Fi* connectivity. The DS1102 targets serial-over-IP and industrial automation applications.
The DS1102 features a multi-channel RS232/422/485 port. The device has a single DB9M connector and is priced as a single-port product, yet provides 3 independent RS232 channels, 2 independent RS422 channels, or a single RS485 channel.
The device can be powered via its power jack or the available power-over-Ethernet module*.
In addition, the DS1102 can be equipped with a 96x32 monochrome OLED display.
There are eight LEDs on the device's front: green and red main status LEDs, yellow Ethernet link LED, and five blue LEDs, which can be used for Wi-Fi signal strength indication or other purposes. A buzzer is provided as well.
Each DS1102 is supplied with the DIN rail and wall mounting plates.
As a Serial-over-IP (SoI) Device
Serial-over-IP conversion is a large part of what we do, and there is an entire section of our website dedicated to serial converters (a.k.a. "serial device servers"). We offer an open-source serial-over-IP (SoI) app that turns the DS1102 into a full-featured RS232/422/485-to-IP converter.
As a Modbus Gateway
Modbus is everywhere — it is virtually synonymous with industrial control! Our open-source Modbus gateway app allows you to seamlessly interconnect Modbus TCP, Modbus ASCII, and Modbus RTU masters and slaves.
Build Your Own IoT Solution
The DS1102 is programmable in Tibbo BASIC and Tibbo C. Develop your very own IoT solution from scratch or take inspiration from our open-source applications and code samples published in the Code and Apps section.
Key Features
10/100 Base-T Ethernet port
Optional Wi-Fi (802.11abgn)
3-channel RS232, 2-channel RS422,or 1-channel RS485
Buzzer
Optional OLED display
Onboard RTC (no backup battery)
1MB flash for TiOS, application code,and file system
2048-byte EEPROM
Optional power-over-Ethernet (PoE)
