EM510 MiniMo® Programmable IoT Module
The EM510 is an ultra-compact Tibbo BASIC/C-programmable IoT Module with a single UART, Ethernet, and optional Wi-Fi/BLE* (Bluetooth Low Energy) connectivity. The module offers substantial performance improvements over its predecessor — the original EM500 device.
The second member of our MiniMo® family, the EM510 is designed to be used in tandem with a standard RJ45/magnetics jack. The combined footprint of the EM510 and a typical jack is only 28.5 x 18.5mm (1.12 x 0.73").
Compact dimensions, space-saving "vertical slice" form factor, low power consumption, and economical pricing make the module an excellent fit for miniature, cost-sensitive IoT devices.
Module testing and evaluation can be performed with our EM510EV development system.
* Requires the WA2000 Wi-Fi/BLE add-on to be connected externally.
Here is How You Can Use the EM510
As a Serial-over-IP (SoI)
Device
Serial-over-IP conversion is a large part of what we do, and there is an entire section of our website dedicated to serial converters (a.k.a. "serial device servers"). We offer a free open-source serial-over-IP (SoI) app that turns the EM510 into a full-featured serial-to-IP converter.
Build Your Own
IoT Solution
The EM510 is programmable in Tibbo BASIC and Tibbo C. Develop your very own IoT solution from scratch or take inspiration from our open-source applications and code samples published in the Code and Apps section.
Streamlined Deployment With LUIS
Anyone who has ever deployed a device in the field knows that the process often gets stuck over silly little things, like the IP address configuration. Enters the Loadable User Interface System (LUIS), our wireless configuration solution for Tibbo devices.
Equip your TPS system with the WA2000 Wi-Fi/BLE add-on, enable LUIS in your AppBlocks application, and define what settings will be exposed through this interface. A typical list includes the IP address, DHCP, Wi-Fi SSID, password, and other basic parameters.
Now your users will be able to configure these essential settings via a Bluetooth Low Energy (BLE) connection from the LUIS app (iOS, Android, web).
It gets even better: The EM510 also supports over-the-air firmware upgrades via BLE using our Tibbo Updater app (iOS, Android, web)!
Key Features
Mid-range ARM CPU
10/100 Base-T Ethernet port (no RJ45/magnetics)
Optional Wi-Fi connectivity (with the WA2000 add-on)
Optional BLE (Bluetooth Low-Energy)connectivity (with the WA2000 add-on)
1 UART, supports serial, Wiegand, andclock/data streams
10 general-purpose I/O lines
4 synchronous serial ports withSPI and I2C modes
512K flash for TiOS and application, support for external 1MB flash disk
2048-byte EEPROM
Patented dual-function LED control (explained below)
Height and width of an RJ45 jack, thickness only 6.5mm
3.3V power
Supports over-the-air (OTA) firmware updates (with WA2000 add-on)
Supported by Cody project generator
Stands Up, Stands Out

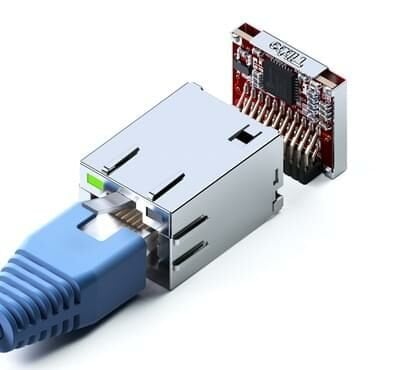

Designed to be mounted vertically and fit behind a standard RJ45 jack, the EM510 reduces the required board space to minuscule 18.5 x 6.5mm (0.73 x 0.25"). The width and height of the EM510 are very close to those of a standard RJ45 jack.
An Enlightening Idea
How many LEDs does a typical RJ jack have? Two. How many LEDs Tibbo modules usually require? At least three — red and green status LEDs, plus one yellow Ethernet link LED.
Minimalist to the end, MiniMo devices make do with just two LEDs of a standard RJ45 jack: device states are displayed using flashing patterns, while LED brightness indicates the Ethernet link state. This is a patented feature available exclusively on our MiniMo line of products.
