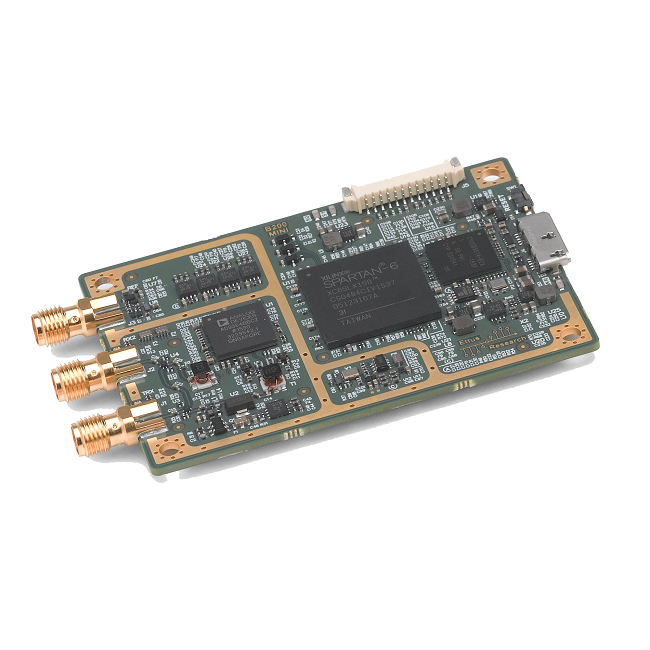

The USRP B200mini delivers a 1×1 SDR/cognitive radio in the size of a business card. With a wide frequency range from 70 MHz to 6 GHz and a user-programmable Xilinx Spartan-6 XC6SLX75 FPGA, this flexible and compact platform is ideal for both hobbyist and OEM applications. The similar Ettus USRP B205mini-i is an industrial temperature version with a larger FPGA for more advanced applications.

The RF front end uses the Analog Devices AD9364 RFIC transceiver with 56 MHz of instantaneous bandwidth. The board is bus-powered by a high-speed USB 3.0 connection for streaming data to the host computer. The USRP B200mini also includes connectors for GPIO, JTAG, and synchronization with a 10 MHz clock reference or PPS time reference input signal.

Experimentation with Low-cost SDR

Experiment with the USRP B200mini across a wide range of applications including: FM and TV broadcast, cellular, GPS, WiFi, ISM, and more. Users can immediately begin prototyping in GNU Radio and participate in the open-source SDR community. Full support by the USRP Hardware Driver™ (UHD) software allows seamless code reuse from existing designs, compatibility with open-source applications like HDSDR and OpenBTS, and an upgrade path to industry-ready USRP systems to meet application requirements.

Features

Features
RF Specifications	Analog Devices AD9364 RFIC transceiver Xilinx Spartan-6 XC6SLX75 FPGA Channels: 1 TX, 1 RX Frequency range: 70 MHz to 6 GHz Instantaneous Bandwidth: Up to 56 MHz IIP3 (at typical NF): -20 dBm Power Output: >10 dBm Receive Noise Figure: <8 dB
Conversion Performance and Clocks	ADC Sample Rate (Max.): 61.44 MS/s ADC Resolution: 12 bits DAC Sample Rate (Max.): 61.44 MS/s DAC Resolution: 12 bits Host Sample Rate (16b): 61.44 MS/s Frequency Accuracy: ±2.0 ppm
Power	USB Power: 5V
Physical	Peripherals: GPIO, JTAG Dimensions: 83.3 x 50.8 x 8.4 mm Weight: 24.0 g
Environment	Operating Temp. Range: 0 - 40 °C (extended to -20-60 °C with enclosure kit) USRP Hardware Driver 3.9.2 (or later) GNU Radio, C/C++, Python
Synchronization	10 MHz clock reference PPS time reference
Product Compliance	HTC: 8471809000 ECCN: 3A992.a

What's Included

USRP B200mini board
USRP Enclosure Kit is available as a bundle option and can also be purchased separately
USB 3.0 cable

Software

The hardware is conveniently accessible through the USRP Hardware Driver (UHD). UHD provides both a C/C++ and Python API that supports all USRP products and enables users to efficiently develop applications then seamlessly transition designs between platforms as requirements expand. UHD also offers cross-platform support for multiple industry standard development environments and frameworks, including RFNoC, LabVIEW, and MATLAB/Simulink. To ensure you have no restrictions on how you use UHD, it is available on Linux, Windows, and Mac OS. Do you prefer graphical programming? Try out GNU Radio, a free and open-source software development framework offering a graphical design approach.

Quickly find what you need to get started and reduce mean time to blink.

All product support including documentation, projects, and reference material can be accessed through Ettus resources.

Ettus Knowledge Base

Quick Links

Datasheet Getting Started Guides Ettus USRP Manual Ettus Support
