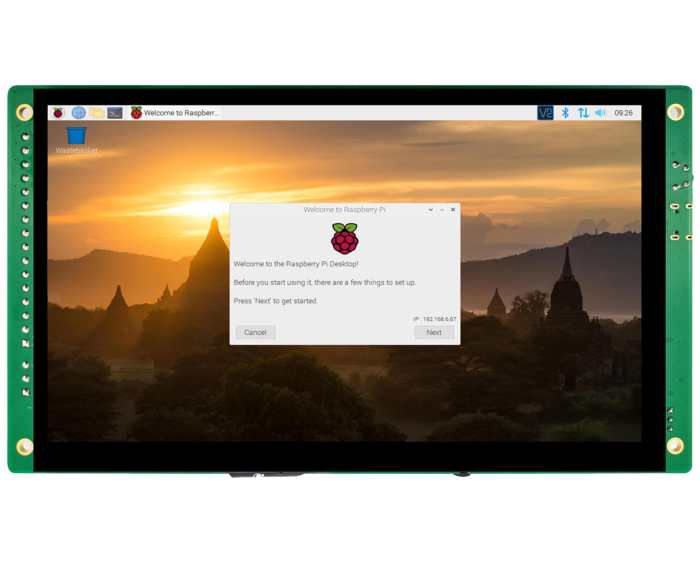

Kart Tipi Endüstriyel PC EPC-CM4-070
The EPC-CM4-070 is full-featured, rugged, designed, and certified for industrial usage, ready to deploy industrial applications based around the Raspberry Pi® Compute Module 4.

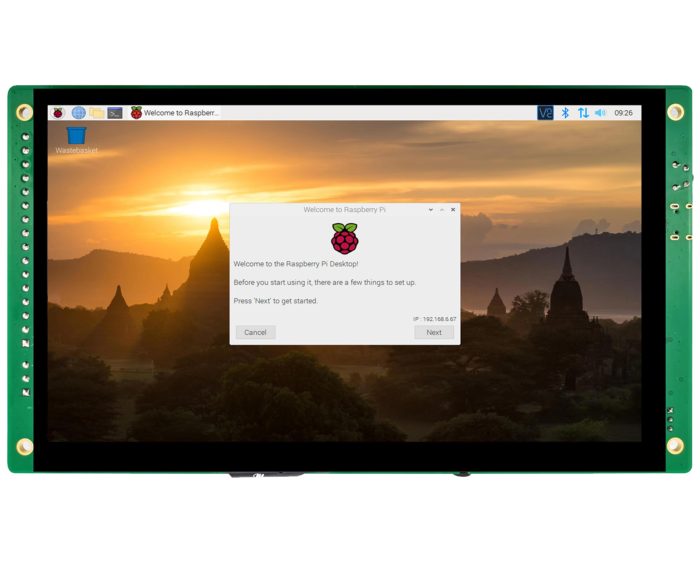

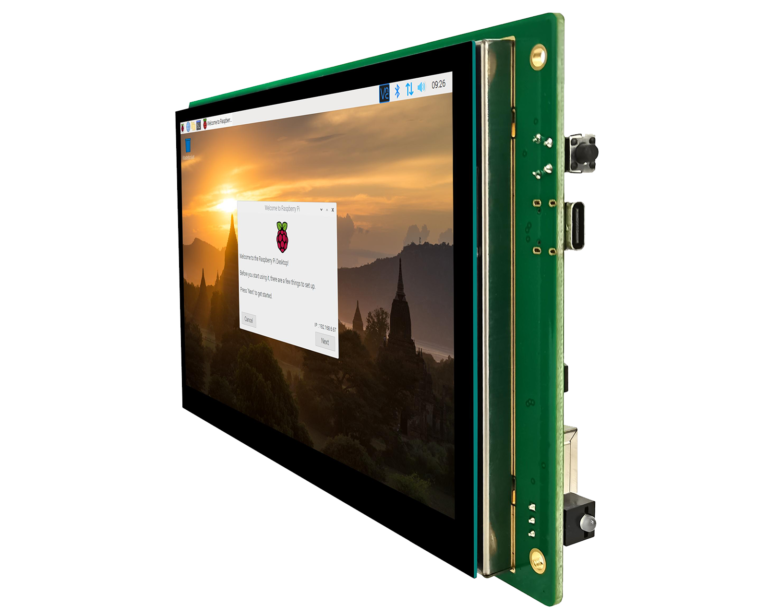

The EPC-CM4-070 (CS10600RA4070E) is an industrial computer for the Raspberry Pi® Compute Module 4. Available in embedded form-factor, the Industrial Pi features a 7-inch IPS display (1024×600 pixels and 500 nits of brightness) with a 5-point capacitive touch panel, and RS232 and RS485 ports, multiple opto-isolated I/O, HDMI connector, Ethernet, double USB, 4G/LTE (optional), ZigBee (optional), double TF card, on-board audio, RTC with a backup battery, audio I/O, and power management. You can add a 4G/LTE module to the product, by choosing it in the optional modules section.The product is delivered withouth the CM4 Raspberry Pi® module. Please contact us if you would like to purchase the product with the CM4 module.
Hardware Features
Performances and reliability
The product has Raspberry Pi CPU, a high-performance Broadcom BCM2711 (RPi 4) application processor.
The EPC-CM4-070 can be powered by a wide range of input voltages: From 6V to 36V DC. There are two types of power input connectors. One is a 3 Pin, 3.81mm screw terminal connector, and the other is a 2.1mm DC input head.
2 TF card slots. One is designed for Lite version that has no eMMC. The other one is designed for storage expansion. The RS485 circuit controls the Input and Output direction automatically, there’s no need to control it from within the software.
Operating System
The Industrial Pi, like other Raspberry Pi® based products, supports the Debian operating system.
We have developed all the needed drivers, so every hardware feature is readily available for any standard development tool. If your project requires an OS that is not on the list, please contact us, and we’ll make a customized version that suits your needs.
| Weight | 400 g |
|---|---|
| Dimensions | 190 × 107.8 × 27.7 mm |
| Form-factor | Embedded |
| CPU | ARM Cortex-A72: Raspberry Pi® CM4 (OPSIYONEL) |
| Display Size (inch.) | 7.0" |
| Resolution | 1024*600 |
| Brightness (NIT) | 500 NIT |
| Touch Screen | Capacitive |
| FLASH | 16GB |
| External storage | 2 TF card slots. One is designed for Lite version that has no eMMC. The other one is designed for storage expansion. |
| WiFi/BT | Depends on the Compute Module 4 selected. |
| ZIGBEE | Optional |
| 4G | Support miniPCIe slot for 4G/LTE module (neither miniPCIe Slot nor 4G LTE module is mounted by default.) |
| Ethernet | 1x Giga LAN |
| Camera | There is a camera connector compatible with the Raspberry Pi Camera connector (the camera is NOT mounted by default). |
| Audio | 3.5mm Audio Out Connector, Internal 2W Speaker |
| Buzzer | Yes |
| HDMI | Yes |
| USB | 1x miniUSB OTG, 2x USB 2.0 HOST |
| RTC | High Accuracy RTC with Lithium Button Coin battery (Lithium Battery not included) |
| GPIO | Opto-Isolated GPIO, 4 Input, 4 Output, can drive up to 500mA current every Channel at most (external power source needed) |
| RS485 | 2 Channels at most. The RS485 circuit controls the Input and Output direction automatically, there’s no need to control it from within the software. |
| RS232 | 4 Channels at most |
| CAN | 1x CAN |
| OS | Debian |
| Power Input | 9-36V DC |
| Power Consumption | 5W |
| Current @ 12V | 420 mA max |
| Working Temperature | 0°C to +60°C |
| Mounting Method | Embedded Mounting |
Certification
Certification
by Raspberry
EPC-CM4-070
| Stok Durumu | : | Stokta Var |
| Inch | : | 7.0'' |
| İşlemci | : | ARM – Raspberry Pi |
