MY-CAM002U USB Digital Camera Module
Stok Kodu : MY-CAM002U
1.184,40 TL
* 126,25 TL den başlayan taksitlerle!

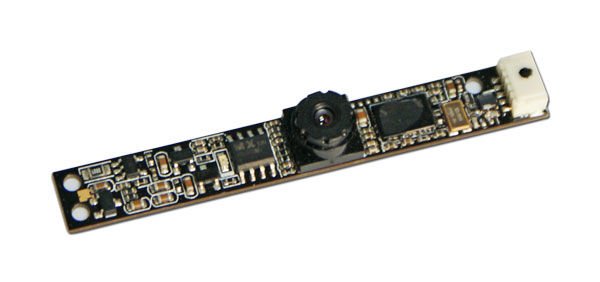

MY-CAM002U USB Digital Camera Module
The MY-CAM002U USB Digital Camera Module is released by MYIR specially for working on MYIR's ARM development boards. It is connected with the boards through USB2.0 Host port and supports resolution up to 1280 by 800 pixels. It is using a CMOS image sensor which is a 1.0MegaPixel digital camera. The module is measuring only 60mm by 8mm with small form factor, low power consumption, high performance which can be used in various products.
Features
| Item | Parameters | |
| Active Array Size | 1280 * 800 | |
| Power Supply | Core | 1.5VDC ± 5% |
| Analog | 3.0 - 3.6V | |
| I/O | 1.71V to 3.6V | |
| Power Requirements | Active | 110 mW |
| Standby | 50 μA | |
| Temperature Range | Operation | -30℃ to 70℃ |
| Stable Image | 0℃ to 50℃ | |
| Output Formats (10-bit) | Raw RGB Data | |
| Lens size | 1/4″ | |
| Chief Ray Angle | 25° non-linear | |
| Maximum Image Transfer Rate | WXGA(1280*800) | 30 fps |
| VGA(640*480) | 60 fps | |
| HD 720p(1280*720) | 30 fps | |
| Sensitivity | 3300 mV/(Lux ·sec) | |
| S/N Ratio | 39 dB | |
| Maximum Exposure Interval | 826 x tROW | |
| Pixel Size | 3 μm x 3 μm | |
| Dark Current | 20 mV/s @ 60℃ | |
| Well Capacity | 13 Ke | |
| Image Area | 3888 μm x 2430 μm | |
| Package Dimensions | CSP2: 5415 μm * 4415 μm COB: 5430 μm * 4430 μm |
|
Board Products Supporting List
The MY-CAM002U USB Digital Camera Module can support working with following MYIR's board products:
| NO. | Processor | Products |
|---|---|---|
| 1 | Atmel SAM9X5 | MYD-SAM9X5 / MYD-SAM9X5-V2 |
| 2 | Atmel SAMA5D3 | MYD-SAMA5D3X / MYD-SAMA5D3X-C |
| 3 | Atmel SAMA5D2 | MYD-SAMA5D2X |
| 4 | TI AM437x | Rico Board / MYD-C437X / MYD-C437X-PRU |
| 5 | Xilinx XC7Z007S/010 | Z-turn Lite |
| 6 | Xilinx XC7Z010/20 | Z-turn Board / MYD-C7Z010/20 / MYD-Y7Z010/007S |
| 7 | Xilinx XC7Z015 | MYD-C7Z015 |
