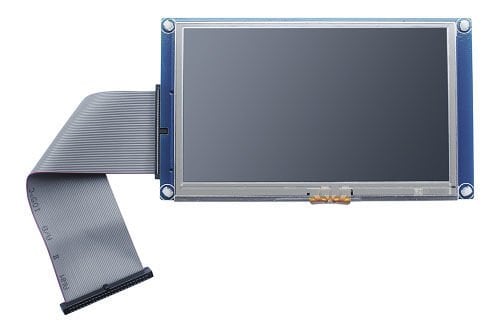

MY-LCD43TP 4.3 inch LCD Module
Stok Kodu : MY-LCD43TP
2.729,92 TL
* 290,99 TL den başlayan taksitlerle!
MY-LCD43TP 4.3 inch LCD Module
The MY-LCD43TP 4.3 inch LCD Module is designed to work with MYIR's ARM development boards and single board computers. It has one 4.3 inch TFT LCD including touch screen with 480 by 272 pixels resolution. MYIR has designed a special LCD adapter board to drive the display and enable touch features. One 50-pin IDC cable or 50-pin FPC cable is also provided to connect the LCD adapter board and MYIR's development board or single board computer. User can experience the high-performance of MYIR's board products through touching and watching the MY-LCD43TP.
LCD Specification
| Item | Parameters | Unit |
|---|---|---|
| Screen Size | 4.3 (16:9) Inch | Inch |
| Number of dots | 480 RGB (H) x 272 (V) pixel | pixel |
| LCM dimension | 105.50 (W) x 67.20 (H) x 4.05 (T) mm | mm |
| Active area | 95.04 (H) x 53.86 (V) mm | Mm |
| Pixel pitch | 0.198 (H) x 0.198 (V) mm | Mm |
| Working Temp. | -20 ~ 70 Celsius degree | |
| Storage Temp. | -30 ~ 80 Celsius degree | |
| Cable interface type I | 1.27mm pitch 50-pin (2 x 25-pin) IDC cable | |
| Cable interface type II | 0.5mm pitch 50-pin FPC cable | |
| LCD adapter board dimensions | 118mm x 69mm |
Signals Routed to 50-pin LCD Connector
Board Products Supporting List
The MY-LCD43TP 4.3 inch LCD Module can support working with following MYIR's board products:
| NO. | Processor | Products |
|---|---|---|
| 1 | ATMEL SAM9G15 | MYD-SAM9G15 / MYD-SAM9G15-V2 / MYS-SAM9G15 |
| 2 | ATMEL SAM9G35 | MYD-SAM9G35 / MYD-SAM9G35-V2 / MYS-SAM9G35 |
| 3 | ATMEL SAM9X35 | MYD-SAM9X35 / MYD-SAM9X35-V2 / MYS-SAM9X35 |
| 4 | ATMEL SAM9G45 | MYS-SAM9G45 |
| 5 | ATMEL SAMA5D31 | MYD-SAMA5D31 / MYD-SAMA5D31-C |
| 6 | ATMEL SAMA5D33 | MYD-SAMA5D33 / MYD-SAMA5D33-C |
| 7 | ATMEL SAMA5D34 | MYD-SAMA5D34 / MYD-SAMA5D34-C |
| 8 | ATMEL SAMA5D36 | MYD-SAMA5D36 / MYD-SAMA5D36-C |
| 9 | NXP LPC4357/4350 | MYD-LPC4357 / MYD-LPC4350 |
| 10 | NXP LPC1857/1850 | MYD-LPC1857 / MYD-LPC1850 |
| 11 | NXP LPC1788 | MYD-LPC1788 |
| 12 | TI AM335x | MYD-AM335X |
| 13 | TI AM335x | MYD-AM335X-Y |
| 14 | TI AM335x | MYD-AM335X-J |
| 15 | Freescale i.MX28 | MYD-IMX28X |
| 16 | Xilinx Zynq-7010/20 | Z-turn Board + Z-turn IO Cape |
