MY-WIREDCOM RPI Module
Stok Kodu : MY-WIREDCOM
1.107,79 TL
* 118,08 TL den başlayan taksitlerle!
MY-WIREDCOM RPI Module
The MY-WIREDCOM RPI Module is specially for MYIR's development boards. It has provided one 2.54mm pitch 2 x 20-pin female expansion connector on board to to allow compatibility and connectivity with Raspberry Pi interface. The module has extended one RS232, one isolated RS485 and one isolated CAN from a 3.81mm pitch 10-pin phoenix connector.

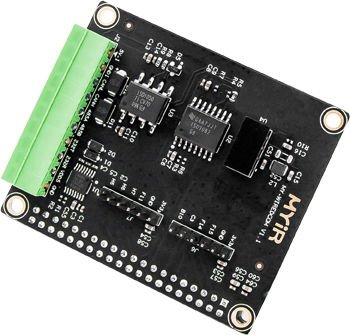

MY-WIREDCOM RPI Module Top-view
MY-WIREDCOM RPI Module Bottom-view
Features
| Item | Parameters |
|---|---|
| Dimensions | 64.4mm (L) * 55.4mm (W) |
| Interface |
|
| Power Supply |
|
| Power consumption | Less than 0.3W |
| Work temperature | -40 to 85 degree Celsius |
| Storage temperature | -40 to 85 degree Celsius |
Signals Routed to 2.54mm pitch 2 x 20-pin female connector J1
| Ref | Pin | Function | Net Signal | Description |
|---|---|---|---|---|
| J1 | 1 | 3.3V power supply | VDD_3V3 | Input type |
| 2 | 5V power supply | VDD_5V | Input type | |
| 3 | I2C data | PF15 (I2C1_SDA) | ||
| 4 | 5V power supply | VDD_5V | Input type | |
| 5 | I2C clock | PF14 (I2C1_SCL) | ||
| 6 | Power GND | GND | ||
| 7 | GPIO | PI11 | ||
| 8 | UART transmit | PD8 (UART3_TX) | ||
| 9 | Power GND | GND | ||
| 10 | UART receive | PB12 (UART3_RX) | ||
| 11 | GPIO | PC3 | ||
| 12 | GPIO | PF8 | ||
| 13 | GPIO | PB10 | ||
| 14 | Power GND | GND | ||
| 15 | GPIO | PZ6 | ||
| 17 | 3.3V power supply | VDD_3V3 | Input type | |
| 18 | CAN transmit | PB13 (CAN_TX) | ||
| 19 | SPI MOSI | PF11 (SPI5_MOSI) | ||
| 20 | Power GND | GND | ||
| 21 | SPI MISO | PH7 (SPI5_MISO) | ||
| 22 | GPIO | PI8 | ||
| 23 | SPI SCK | PH6 (SPI5_SCK) | ||
| 24 | SPI CE0 | PH5 (SPI5_CE0) | ||
| 25 | Power GND | GND | ||
| 26 | SPI CE1 | PF13 (SPI5_CE1) | ||
| 27 | I2C SDA | PZ7 (I2C2_SDA) | ||
| 28 | I2C SCL | PH4 (I2C2_SCL) | ||
| 29 | GPIO | PD13 | ||
| 30 | Power GND | GND | ||
| 31 | GPIO | PF10 | ||
| 32 | GPIO | PA5 | ||
| 33 | GPIO | PC0 | ||
| 34 | Power GND | GND | ||
| 35 | GPIO | PF9 | ||
| 36 | GPIO | PF12 | ||
| 37 | GPIO | PF7 | ||
| 38 | GPIO | PB2 | ||
| 39 | Power GND | GND | ||
| 40 | GPIO | PF6 |
