MYB-6ULX Expansion Board
The MYB-6ULX Expansion Board is designed specially for MYIR's MYS-6ULX which is a highly-integrated Single Board Computer based on NXP's i.MX 6UltraLite / 6ULL ARM Cortex-A7 processor. It is connected to the MYS-6ULX board through two 2.0mm pitch 2 x 20-pin expansion female header connectors. The MYB-6ULX expansion board has extended one more Ethernet for MYS-6ULX and also added CAN, RS485, Audio, RTC and Camera functions which has further enhanced the performance of MYS-6ULX board.
Z-turn Lite IO Cape
Specification
| MYB-6ULX Expansion Board | 70mm x 55mm, 4-layer PCB, 5V/1A USB Power Supply |
| Supports -40°C~85°C Working Temperature | |
| 1 x 10/100Mbps | |
| 1 x CAN | |
| 1 x RS485 | |
| 1 x Micro USB Debug port | |
| 1 x Microphone, 1 x Headphone, 1 x Line In | |
| 1 x Camera Interface (30-pin FPC connector) | |
| 1 x RTC Battery Socket | |
| 1 x IO Expansion Header (2.0mm pitch 2 x 7-pin headers) | |
| 2 x x 2.0mm pitch 2 x 20-pin female Header Connectors (connect with MYS-6ULX) |

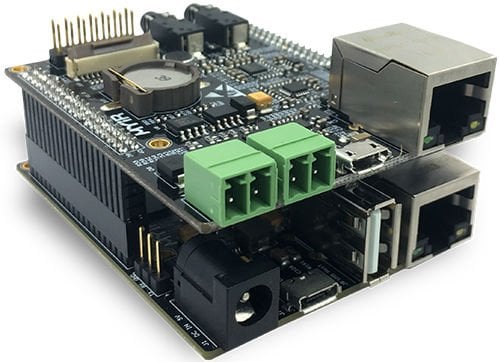

MYB-6ULX Expansion Board mounted on MYS-6ULX Single Board Computer (delivered without battery)
Dimensions of MYB-6ULX Expansion Board
