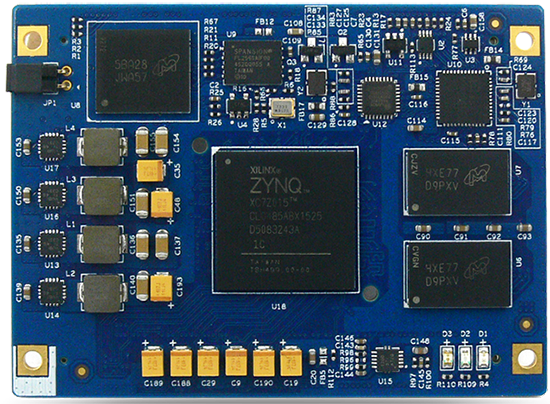

MYC-C7Z015 CPU Module
MYC-C7Z015 CPU Module
The MYC-C7Z015 CPU Module is an SOM (System on Module) board based on Xilinx XC7Z015 (Z-7015) All Programmable System-on-Chip (SoC) which is among the Xilinx Zynq-7000 family, featuring integrated dual-core ARM Cortex-A9 processor with Xilinx 7-series FPGA logic, four 6.25Gbps SerDes transceivers and one PCIe Gen2 x 4 integrated block. The MYC-C7Z015 module has 1GB DDR3 SDRAM, 4GB eMMC, 32MB quad SPI Flash, a Gigabit Ethernet PHY, a USB PHY and external watchdog on board. It provides a large number of I/O signals for ARM peripherals and FPGA I/Os through two 0.8mm pitch 140-pin board-to-board connectors, which is ideal for your next embedded design.
MYC-C7Z015 CPU Module
- 766MHz Xilinx XC7Z015 Dual-core ARM Cortex-A9 Processor with Xilinx 7-series FPGA logic
- 1GB DDR3, 4GB eMMC, 32MB QSPI Flash
- On-board Gigabit Ethernet PHY
- Two 0.8mm pitch 140-pin Board-to-Board Expansion Connectors
- Ready-to-Run Linux 5.4.0
The MYC-C7Z015 CPU Module is compatible with MYIR’s MYC-C7Z010/20 CPU Modules and they can share the same base board which is designed by MYIR for evaluation or prototype purpose. The MYD-C7Z015 development board takes full features of the Zynq-7015 SoC. It has full features of the MYD-C7Z010/20 development board, additionally, it has one PCIe interface with two lanes and one SFP transceiver module interface.
MYD-C7Z015 Development Board
The MYC-C7Z015 CPU Module is ready to run Linux 5.4.0. It can be used in a variety of commercial, medical, automation, industrial, and military embedded applications.
Features
Mechanical Parameters
- Dimensions: 75mm x 55mm (12-layer PCB design)
- PCB Layers: 10-layer design
- Power supply: 5V/0.5A
- Working temperature: -40~85 Celsius (industrial grade)
SoC
- Xilinx XC7Z015-2CLG485 (Zynq-7015)
- 766MHz ARM® dual-core Cortex™-A9 MPCore processor (up to 866MHz)
- Integrated Artix-7 class FPGA subsystem with 74K logic cells, 46,200 LUTs, 160 DSP slices
- NEON™ & Single / Double Precision Floating Point for each processor
- Supports a Variety of Static and Dynamic Memory Interfaces
- Four high-speed SerDes transceivers up to 6.25Gbps
- Four PCIe Gen2 hardened, integrated IP blocks
Memory
- 1GB DDR3 SDRAM (512MB*2)
- 4GB eMMC
- 32MB QSPI Flash (16MB is optional)
Peripherals and Signals Routed to Pins
- 10/100/1000M Ethernet PHY
- USB PHY
- External watchdog
- Three LEDs
- One blue LED for power indicator
- One red LED for FPGA program done indicator
- One green user LED
- Two 0.8mm pitch 140-pin board-to-board expansion connectors bring out below signals:
- One Gigabit Ethernet
- One USB OTG 2.0
- Up to two Serial ports (reused from PS_MIO, can also be implemented through PL pins)
- Up to two I2C (reused from PS_MIO, can also be implemented through PL pins)
- Up to two CAN BUS (reused from PS_MIO, can also be implemented through PL pins)
- One SPI (reused from PS_MIO, can also be implemented through PL pins)
- ADC (one independent differential ADC, 16-channel ADC brought out through PL pins)
- One SDIO (PS SDIO 0)
- Bank 13 (PL I/O configurable as up to 18 LVDS pairs and 1 single-ended I/O or 37 single-ended I/O)
- Bank 34 (PL I/O configurable as up to 24 LVDS pairs and 2 single-ended I/O or 50 single-ended I/O)
- Bank 35 (PL I/O configurable as up to 24 LVDS pairs and 2 single-ended I/O or 50 single-ended I/O)
- Bank 112 (4 GTP serial transceivers, 2 reference clock input)
OS Support
- Linux 5.4.0
Order Part No and Packing List
| Item | Part No. | Included |
|---|---|---|
|
MYC-C7Z015 |
MYC-C7Z015-4E1D-766-I |
- One MYC-C7Z015 CPU Module |
|
MYD-C7Z015 |
MYD-C7Z015-4E1D-766-I |
- One MYD-C7Z015 Board |
Hardware Specification
The Zynq™-7000 family of devices combines the software programmability of a Processor with the hardware programmability of an FPGA, resulting in unrivaled levels of system performance, flexibility, scalability while providing system benefits in terms of power reduction, lower cost with fast time to market. Unlike traditional SoC processing solutions, the flexible programmable logic of the Zynq-7000 devices enables optimization and differentiation, allowing designers to add peripherals and accelerators to adapt to a broad base of applications.
The Zynq-7000 AP SoC leverages the 28nm scalable optimized programmable logic used in Xilinx’s 7 series FPGAs. Each device is designed to meet unique requirements across many use cases and applications. The Z-7010, Z-7015, and Z-7020 leverage theArtix®-7 FPGA programmable logic and offer lower power and lower cost for high-volume applications. The Z-7030, Z-7035, Z-7045, and Z-7100 are based on the Kintex®-7 FPGA programmable logic for higher-end applications that require higher performance and high I/O throughput.
Software Features
The MYC-C7Z015 CPU Module is preloaded with Linux 5.4.0. MYIR provides software package in product disk along with the goods delivery. The software package features as below:
| Item | Features | Description | Remark |
|---|---|---|---|
| Cross compiler | gcc 9.2.0 | arm-xilinx-linux-gnueabi-gcc (GCC) 9.2.0 | |
| Boot program | BOOT.BIN | First boot program including FSBL, bitstream | Source code provided |
| u-boot | Secondary boot program | Source code provided | |
| Linux Kernel | Linux 5.4.0 | Customized kernel for MYC-C7Z015 | Source code provided |
| Drivers | USB Host | USB Host driver | Source code provided |
| PCI-E | PCIE driver | Source code provided | |
| SFP | SFP transceiver driver | Source code provided | |
| Ethernet | Gigabit Ethernet driver | Source code provided | |
| MMC/SD/TF | MMC/SD/TF card driver | Source code provided | |
| CAN | CAN driver | Source code provided | |
| LCD Controller | XYLON LCD driver | Source code provided | |
| HDMI | HDMI (SII902X chip) driver | Source code provided | |
| Button | Button driver | Source code provided | |
| UART | Serial port driver | Source code provided | |
| LED | LED driver | Source code provided | |
| GPIO | GPIO driver | Source code provided | |
| QSPI | QSPI Flash S25FL256S driver | Source code provided | |
| RTC | DS3231 RTC driver | Source code provided | |
| Resistive Touch | TSC2007 resistive touch screen driver | Source code provided | |
| Capacitive Touch | FT5X0X capacitive touch screen driver | Source code provided | |
| ADC | ADC driver | Source code provided | |
| File System | Ramdisk | Ramdisk system image | |
| RootFS | Build from buildroot tools, With Qt 5.11.3 | ||
| Ubuntu Desktop 18.04 | tar archive file and SD image |
