Measuring only 70mm by 55mm, the MYS-6ULX is a high-performance low-cost Single Board Computer specially designed for Industry 4.0 (Industrie 4.0) and Internet of Things (IoT) applications. It is based on NXP’s i.MX 6UltraLite / 6ULL processor family which features the most efficient ARM Cortex-A7 core and can operate at 528 MHz. It has two 2.0mm pitch 2x20-pin headers on board to allow extension of the controller signals and ports to the base board through headers and connectors, thus exposing more features of the i.MX 6UL / 6ULL ARM Cortex-A7 Processors, so it can also be used as a System-on-Module (SoM) for your next embedded design.
The MYS-6ULX has two variants of boards which are called MYS-6ULX-IND and MYS-6ULX-IOT to meet different applications. The MYS-6ULX-IND is targeting industry 4.0 applications and based on i.MX6UL series processors while the MYS-6ULX-IOT is oriented for IoT applications and using i.MX6ULL series processors. They share the same hardware circuit design and fully compatible in software but also have their own characteristics. The MYS-6ULX-IOT has additionally a USB based WiFi module with antenna on the board. The MYS-6ULX-IND can support -40 to +85 Celsius extended temperature operation, which makes the board more suitable for industrial control and communication applications. MYIR has ported Linux 5.10.9 for the board with Debian distribution as well as Yocto project with ported QT. MYIR has also provided an interesting demo to enable customers to experience Amazon Alexa Voice Service.

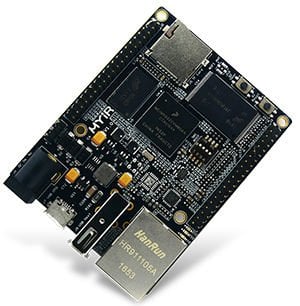

MYS-6ULX-IND (or MYS-6ULY2-256N256D-50-I-IND)
MYS-6ULX-IOT
- 528MHz NXP i.MX 6UltraLite / 6ULL ARM Cortex-A7 Processor
- 256MB DDR3, 256MB Nand Flash
- Ethernet, WiFi, LCD, USB Host, Device, TF Card, IO…
- Optional MYB-6ULX Expansion Board adds Ethernet, CAN, RS485, Audio, RTC and Camera
- Optional 4.3 or 7 inch LCD Module, Camera and WiFi Modules
- Two Variants of MYS-6ULX Boards Respectively for Industry 4.0 and IoT Applications
- Support Linux 5.10.9 with Debian distribution or by Yocto Project with Ported QT
MYIR has also designed an expansion board MYB-6ULX which is connected to the MYS-6ULX board through its onboard two 2.0mm pitch 2 x 20-pin expansion headers. The expansion board has extended one more Ethernet for MYS-6ULX and also added CAN, RS485, Audio, RTC and Camera functions which has further enhanced the performance of MYS-6ULX board. MYIR will offer optional LCD modules, Camera and WiFi modules to add functionality to the boards, which would be a complete embedded system.
The MYS-6ULX Single Board Computer takes full features of the i.MX 6UltraLite / 6ULL processors. Below table list the features of the two variants of the MYS-6ULX boards to help customers make choices according to their requirements.
| Features | MYS-6ULX-IND | MYS-6ULX-IOT |
|---|---|---|
| Dimensions | 70mm x 55mm | |
| PCB Layer | 8-layer | |
| Power Supply | 5V/1A | |
| Power Consumption |
|
|
| Working Temp. | -40°C~85°C | 0°C~70°C |
| Target Applications | Industry 4.0 | IoT |
| CPU | MCIMX6Y2CVM05A / MCIMX6G2CVM05A | MCIMX6Y2DVM05A |
| DDR3 | 256MB (support up to 2GB) | |
| Nand Flash | 256MB (support 512MB/1GB) | |
| Ethernet | 1 x 10/100Mbps | |
| USB | 1 x USB Host, 1 x Micro USB Device | |
| TF Card | 1 x Micro SD card slot | |
| Button | 1 x Reset Button, 1 x User Button | |
| LED | 1 x Power Indicator, 2 x User LEDs | |
| LCD Connector | 24-bit RGB LCD & Touch Screen (50-pin FPC connector) | |
| Debug Connector | 2.5mm pitch 3-pin Headers, TTL | |
| Expansion Headers |
|
|
| WiFi Module | - | 2.4GHz, IEEE 802.11b/g/n standards |
| MYB-6ULX Expansion Board | 70mm x 55mm, 4-layer PCB, 5V/1A USB Power Supply | |
| Supports -40°C~85°C Working Temperature | ||
| 1 x 10/100Mbps | ||
| 1 x CAN | ||
| 1 x RS485 | ||
| 1 x Micro USB Debug port | ||
| 1 x Microphone, 1 x Headphone, 1 x Line In | ||
| 1 x Camera Interface (30-pin FPC connector) | ||
| 1 x RTC Battery Socket | ||
| 1 x IO Expansion Header (2.0mm pitch 2 x 7-pin headers) | ||
| 2 x 2.0mm pitch 2 x 20-pin female Header Connectors (connect with MYS-6ULX) | ||
Packing List
| Item | Part No. |
|---|---|
| MYS-6ULX Single Board Computer | MYS-6ULX-IND |
Hardware Features
i.MX 6UltraLite: The i.MX 6UltraLite processor family featuring an advanced implementation of a single ARM® Cortex®-A7 core, which operates at speeds up to 696 MHz. It includes an integrated power management module that reduces the complexity of external power supply and simplifies power sequencing. Each processor in this family provides various memory interfaces, including 16-bit LPDDR2, DDR3, DDR3L, raw and managed NAND flash, NOR flash, eMMC, Quad SPI and a wide range of other interfaces for connecting peripherals such as WLAN, Bluetooth™, GPS, displays and camera sensors.
MYIR is using the 14 x 14mm, 0.8 mm ball pitch, 289 MAPBGA package i.MX6UL application processor on the MYS-6ULX-IND board which provides multiple compatible options of G0, G1, G2 and G3 sub families. The MCIMX6G2CVM05A is the default part with the board and MYIR offers optional configurations for mass customization.
| Feature | MCIMX6G0 | MCIMX6G1 | MCIMX6G2 | MCIMX6G3 |
|---|---|---|---|---|
| Speed | 528 MHz | 528 MHz, 696 MHz | 528 MHz, 696 MHz | 528 MHz |
| Cache | 32 KB-I, 32 KB-D | 32 KB-I, 32 KB-D | 128 KB L2 | 32 KB-I, 32 KB-D |
| OCRAM | 128 KB | 128 KB | 128 KB | 128 KB |
| DRAM | 16-bit LP-DDR2, DDR3/DDR3L | 16-bit LP-DDR2, DDR3/DDR4L | 16-bit LP-DDR2, DDR3/DDR5L | 16-bit LP-DDR2, DDR3/DDR6L |
| eFuse | 512-bit | 1024-bit | 1536-bit | 2048-bit |
| NAND (BCH40) | Yes | Yes | Yes | Yes |
| EBI | Yes | Yes | Yes | Yes |
| Ethernet | 10/100-Mbit/s x 1 | 10/100-Mbit/s x 1 | 10/100-Mbit/s x 2 | 10/100-Mbit/s x 2 |
| USB | OTG, HS/FS x 1 | OTG, HS/FS x 2 | OTG, HS/FS x 2 | OTG, HS/FS x 2 |
| CAN | 0 | 1 | 2 | 2 |
| Security | Basic | TRNG, Crypto Engine (AES/TDES/SHA), Secure Boot | TRNG, Crypto Engine (AES/TDES/SHA), Secure Boot | TRNG, Crypto Engine (AES with DPA/TDES/SHA/RSA), Secure Boot, tamper monitor, PCI4.0 pre-certification, OTF DRAM encryption |
| Graphic | None | None | PxP | PxP |
| CSI | None | None | 24-bit Parallel CSI | 24-bit Parallel CSI |
| LCD | None | None | 24-bit Parallel LCD | 24-bit Parallel LCD |
| Quad SPI | 1 | 1 | 1 | 1 |
| SDIO | 2 | 2 | 2 | 2 |
| UART | 4 | 8 | 8 | 8 |
| I2C | 2 | 4 | 4 | 4 |
| SPI | 2 | 4 | 4 | 4 |
| I2S/SAI | 1 | 3 | 3 | 3 |
| S/PDIF | 1 | 1 | 1 | 1 |
| Timer/PWM | Timer x 2, PWM x 4 | Timer x 4, PWM x 8 | Timer x 4, PWM x 8 | Timer x 4, PWM x 8 |
| 12-bit ADC | 1 x 10-ch. | 1 x 10-ch. | 2 x 10-ch. | 2 x 10-ch. |
i.MX 6ULL: The i.MX 6ULL processor which is a high-performance, ultra-efficient processor family featuring an advanced implementation of a single ARM® Cortex®-A7 core and capable of operating at speeds up to 528 MHz. The i.MX 6ULL is supported by discrete component power circuitry. It is a cost down version of i.MX 6UltraLite with fewer security features and lower maximum CPU frequency, but adding ePD support.
MYIR is using the 14 x 14mm, 0.8 mm ball pitch, 289 MAPBGA package i.MX6ULL application processor on the MYS-6ULX-IOT board which provides multiple compatible options of Y0, Y1 and Y2 sub families. The MCIMX6Y2DVM05A is the default part with the board and MYIR offers optional configurations for mass customization.
| Feature | MCIMX6Y0 | MCIMX6Y1 | MCIMX6Y2 |
|---|---|---|---|
| Feature | MCIMX6Y0 | MCIMX6Y1 | MCIMX6Y2 |
| Core | ARM® Cortex-A7 | ARM® Cortex-A7 | ARM® Cortex-A7 |
| Speed | 528 MHz | 528 MHz | 528 MHz |
| Cache | 32 KB-I, 32 KB-D | 32 KB-I, 32 KB-D, 128 KB L2 | 32 KB-I, 32 KB-D, 128 KB L2 |
| OCRAM | 128 KB | 128 KB | 128 KB |
| DRAM | 16-bit LP-DDR2, DDR3/DDR3L | 16-bit LP-DDR2, DDR3/DDR4L | 16-bit LP-DDR2, DDR3/DDR5L |
| eFuse | 256-bit | 256-bit | 256-bit |
| NAND (BCH40) | Yes | Yes | Yes |
| EBI | Yes | Yes | Yes |
| Ethernet | 10/100-Mbit/s x 1 | 10/100-Mbit/s x 1 | 10/100-Mbit/s x 2 |
| USB | OTG, HS/FS x 1 | OTG, HS/FS x 2 | OTG, HS/FS x 2 |
| CAN | 0 | 1 | 2 |
| Graphic | None | None | PxP |
| CSI | None | None | 16-bit Parallel CSI |
| LCD | None | None | 24-bit Parallel LCD |
| Quad SPI | 1 | 1 | 1 |
| SDIO | 2 | 2 | 2 |
| UART | 4 | 8 | 8 |
| I2C | 2 | 4 | 4 |
| SPI | 2 | 4 | 4 |
| I2S/SAI | 1 | 3 | 3 |
| ESAI | 1 | 1 | 1 |
| S/PDIF | 1 | 1 | 1 |
| Timer/PWM | Timer x 2, PWM x 4 | Timer x 4, PWM x 8 | Timer x 4, PWM x 8 |
| 12-bit ADC | 1 x 10-ch. | 1 x 10-ch. | 2 x 10-ch. |
| Security | None | AES-128, HAB | AES-128, HAB |
| Temperature | -40°C to 105°C (Tj) | -40°C to 105°C (Tj) | -40°C to 105°C (Tj) |
Function Block Diagram of MYS-6ULX-IND
Function Block Diagram of MYS-6ULX-IOT
Dimension Chart of MYS-6ULX Single Board Computer
Dimension Chart of MYB-6ULX Expansion Board
Software Features
The MYS-6ULX Single Board Computer is ready to run Linux with Debian distribution or by Yocto project with QT. Many peripheral drivers are in source code to help accelerate customers’ designs with a stable and reliable hardware and software platform. The software features are summarized as below::
| Item | Features | Description |
|---|---|---|
| Bootstrap program | U-boot | The primary bootstrap (source code) |
| Linux kernel | Version | Linux 5.10.9 (source code) |
| Linux Drivers | USB | HOST and Device drivers (source code) |
| Ethernet | Ethernet driver (source code) | |
| MMC/SD | MMC/SD card driver (source code) | |
| NandFlash | Nand Flash driver (source code) | |
| UART | UART driver (source code) | |
| LCD Controller | LCD driver (source code), supporting MYIR’s 4.3- and 7- inch LCD module | |
| Touch Panel | Touch screen driver (source code), supporting 4-wire capacitive and resistive touch screen | |
| CAN | CAN driver (source code) | |
| Camera | Camera driver (source code), Supporting MYIR’s MY-CAM011B Camera module | |
| Audio | Audio driver (source code) | |
| RTC | RTC driver (source code) | |
| Button | Button driver (source code) | |
| LED | LED driver (source code) | |
| File System | Yocto | Including QT 5.0 (source code) |
| Debian | Binary file and Building Instructions | |
| Compiler Tool Chain | Linaro GCC 4.9 hf | Binary file |
