Z-turn Lite IO Cape for Z-turn Lite
Stok Kodu : Z-turn Lite IO Cape
1.186,92 TL
* 126,52 TL den başlayan taksitlerle!

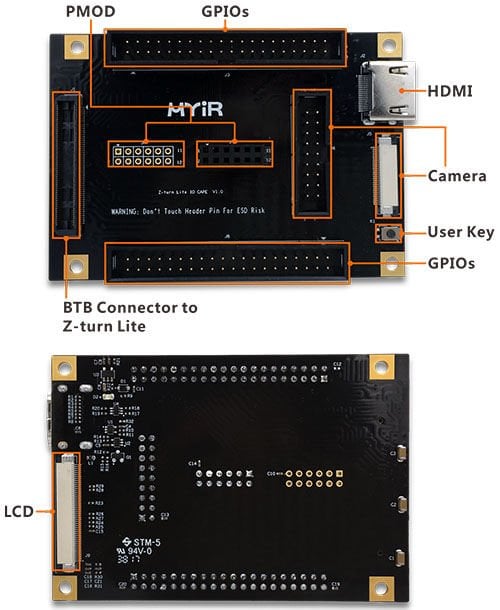

Z-turn Lite IO Cape
The Z-turn Lite IO Cape is an IO extension board designed specially for Xilinx Zynq-7010 SoC based Single Board Computer Z-turn Lite which is an ultra-cost-effective lite version of MYIR’s Z-turn board V2. User can bring out many peripherals and signals like HDMI, Camera, LCD and GPIOs to help you explore more functions from the Z-turn Lite.
Z-turn Lite IO Cape
Specification
| Item | Description |
|---|---|
| I/O |
|
| LCD/Touch screen |
|
| Camera | One Camera interface through 30-pin FPC connector (J3) or 2.54mm pitch 2 x 9-pin connector (J6) |
| Pmod | Two Pmod interfaces, can be used for connecting with some common Pmod modules (J7 is soldered with 2.54mm pitch 2 x 6-pin female connector and J4 is not soldered with connector) |
| HDMI | One HDMI interface (supports 720p resolution currently, 1080p later) We offer reference design for HDMI and LCD display functions without limitation for its. The IP cores in the design are provided by Xilinx. MYIR will provide Vivado project and SDK testing programs. |
| Dimensions | 91mm x 63mm |
| Power input | 5V, 3.3V |
Z-turn Lite connected with Z-turn Lite IO Cape
Dimensions of Z-turn Lite IO Cape
