Endüstriyel Panel PC PPC-CM4-156

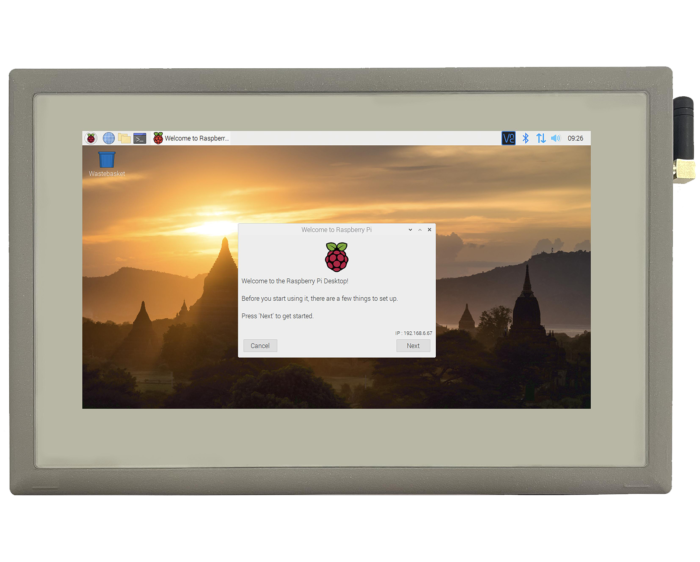

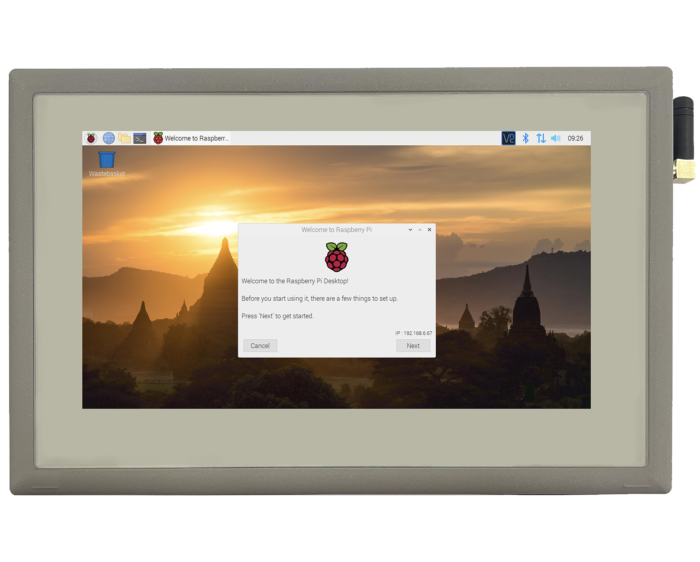

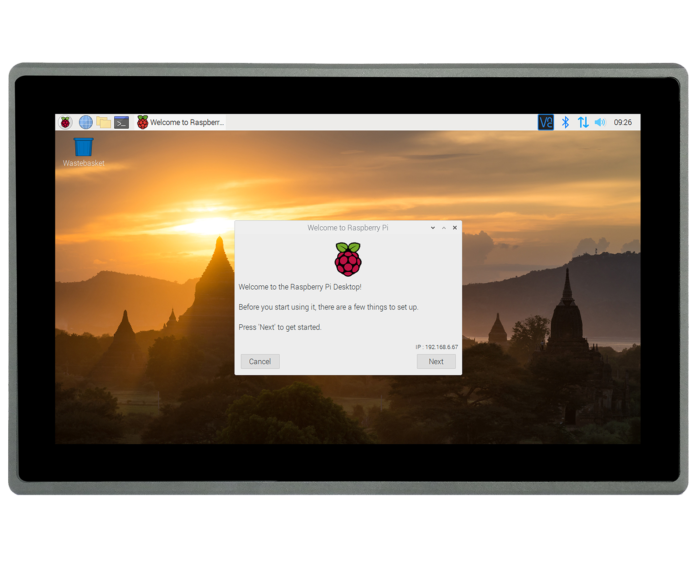

PPC-CM4-156 is a 15.6” industrial PC powered by the Raspberry Pi Compute Module 4 (Quad Cortex®-A72 processor at 1.5GHz clock).
The Cortex®-A72 Raspberry Pi® series PPC-CM4-156 (PN: CS19108RA4156) is a high-quality industrial Pi PC. This single board computer features a 15.6” Ten-point capacitive touch screen with a resolution of 1920 x 1080 pixels and brightness of 400 cd/m2 Raspberry Pi Display.
Hardware Features
Performances and reliability
The product has Raspberry Pi CPU, a high-performance Broadcom BCM2711 (RPi 4) application processor.
The PPC-CM4-070 can be powered by a wide range of input voltages: From 6V to 36V DC. There are two types of power input connectors. One is a 3 Pin, 3.81mm screw terminal connector, and the other is a 2.1mm DC input head.
2 TF card slots. One is designed for Lite version that has no eMMC. The other one is designed for storage expansion. The RS485 circuit controls the Input and Output direction automatically, there’s no need to control it from within the software.
Raspberry Pi Compute Module 4
This IPC core is the Raspberry Pi CM4, powered by a high-performance Broadcom BCM2711 (RPi 4) application processor.
The BCM2711 has the quad-core CPU design of the BCM2837 but uses the more powerful ARM A72 core. It has a greatly improved GPU feature set with much faster input/output. It is also capable of addressing more memory.
The BCM2711 chip continues to use the heat-spreading technology that started with the BCM2837B0, which provides better thermal management.
Raspberry Pi OS
All products based on Raspberry Pi come with the latest version of Raspberry Pi OS pre-installed. We have also included all the necessary drivers, allowing you to easily access every hardware feature using any standard development tool. If your project requires an operating system not on our list, please feel free to contact us, and we will create a customised version tailored to your specific needs.
| CPU | Raspberry Pi® CM4; Quad Cortex-A72 at 1.5GHz |
|---|---|
| Storage | Support for 1 x TF Card |
| RAM | 2/4/8 GB, Based on CM4 |
| eMMC | 16/32 GB, Based on CM4 |
| Display | 15.6” IPS LCD, 1920 x 1080 resolution, brightness 400 cd/m² |
| Touch | 10-point capacitive touch with 1mm Armored Glass |
| USB | 2 x USB 3.0 Host, 1 x USB OTG |
| LAN | 1 x Giga LAN |
| Audio | 3.5mm Audio Out Connector, 2W Speaker Internal |
| Buzzer | Onboard Buzzer, driven by GPIO |
| RTC | High accuracy RTC with farad capacitor (1 week after power off). Optional: lithium coin battery (3 years). |
| RS232 | Default to 2 x RS232, up to 4 x RS232 |
| RS485 | Default to 2 x RS485, configurable as 2 x RS232 |
| CAN | 1 x CAN-BUS |
| GPIO | 8 Channels, 4 Input, 4 Output |
| I2C | Not Supported |
| WiFi/BT | Supported but depends on CM4 selected |
| ZIGBEE | Onboard Zigbee module, not mounted by default |
| HDMI | Not Supported |
| SATA II | Not Supported |
| 3G/4G/LTE | Supported, not mounted by default |
| Camera | No |
| Power Input | From 12V to 36V |
| Current | 1400mA Max at 12V |
| Power Consumption | 17W Typical |
| Working Temperature | From 0°C to +80°C |
| OS | Raspberry Pi OS |
| Dimensions | CS19108RA4156P: 400 × 256 × 52.5mm |
| Weight | CS19108RA4156P: 4500g |
| Mounting Method | CS19108RA4156P: Panel, VESA |
| Stok Durumu | : | Stokta Var |
| Inch | : | 7.0'' |
| İşlemci | : | ARM – Raspberry Pi |
