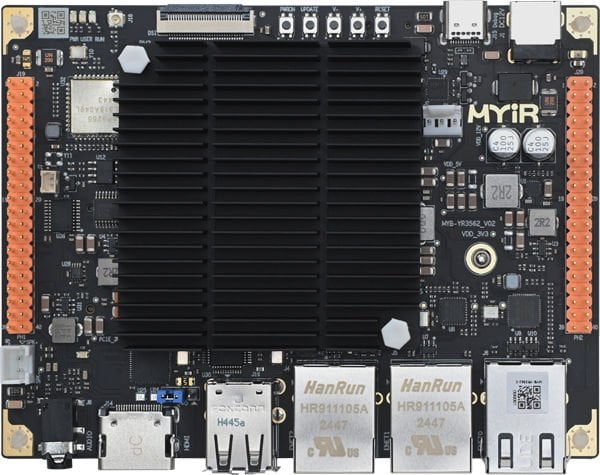

MYD-YR3562 Development Board

The MYD-YR3562 is equipped with a 12V/3A power adapter, a USB Type-C cable, a WiFi/Bluetooth antenna, and a quick start guide. MYIR provides optional accessories, such as the MY-CAM004M 4AHD-to-MIPI Camera Module, MY-CAM005M MIPI Camera Module, and MY-MIPI101C 10.1-inch LCD Module. The MYD-YR3562J-GK kit, featuring the RK3562J CPU, includes the MY-ICEB001 expansion board, which adds three USB2.0 ports, one RS232 port, two RS485 ports, two CAN interfaces, and an M.2 Socket for a USB-based 4G/5G LTE Module with a SIM card holder, operating within a temperature range of -40 to 85 degrees Celsius. These enhancements substantially broaden the board's functionality, providing users with the flexibility to tailor the solution to their unique project needs.

Features

Mechanical Parameters

• Dimensions: 90mm x 120mm (base board), 45mm x 43mm (SOM)
• PCB Layers: 6-layer design (base board), 10-layer design (SOM)
• Power Supply: 12V/3A (base board); 3.3V/2A (SOM)
• Working Temperature: 0~70°C (commercial grade, with RK3562) or -40~85°C (industrial grade, with RK3562J)
• WiFi/BT Module Temperature: -30~85°C

Processor

Processor

• Rockchip RK3562 / RK3562J Processor
• Quad-core Arm Cortex-A53 at up to 2.0 GHz (RK3562)
• Quad-core Arm Cortex-A53 at up to 1.2GHz/1.8GHz (RK3562J at normal mode/overdrive mode)
• Arm Mali-G52-2EE 3D GPU
• Up to 1 TOPs Neural Processing Unit (NPU)
• Supports up to 1080p@60fps H.264 or 4K@30fps H.265 video decoding
• Supports up to 1080p@60fps H.264 video encoding

Memory and Storage

• 1GB/2GB LPDDR4
• 8GB/16GB eMMC
• 32Kbit EEPROM

Peripherals and Signals Routed to Pins

• Power Management IC (PMIC)
• 1.0 mm pitch 164-pin Castellated-Hole and 58-pin LGA expansion interfaces
• 1x RGMII
• 1x RMII
• 1x USB3.0/2.0 OTG
• 1x USB2.0 Host
• 1x PCIe 2.1/USB3.0 (Multi-PHY)
• 3x SPI
• 2x SDIO 3.0
• 10x UART
• 2x CAN 2.0B
• 5x I2C
• 16x PWM
• 2x SARADC
• 2x MIPI CSI
• 1x MIPI DSI
• 1x 24-bit RGB
• 1x LVDS
• 3x SAI
• 1x SPDIF
• 1x 8-channel PDM

The MYD-YR3562 Development Board Base Board

• 1x Power Jack
• 5x Buttons (Update, PWR, V+, V-, RESET)
• 3x LEDs (1x PWR LED, 1x RUN LED, 1x USR LED)
• 1x Micro SD card slot
• 1x M.2 NVME PCIe SSD socket
• 1x Debug UART (USB Type-C)
• 1x 10/100/1000Mbps Ethernet (RJ45)
• 2x 10/100Mbps Ethernet (RJ45)
• 1x WiFi/Bluetooth Module (complies with IEEE 802.11a/b/g/n/ac standard and supports BT 5.2)
• 2x USB3.0 Interfaces (Type-A)
• 1x HDMI Interface
• 1x MIPI-DSI Interface (0.5mm pitch 30-pin FPC connector)
• Supports MYIR’s MY-MIPI101C 10.1-inch MIPI Module (1920*1200 resolution)
• 3x MIPI-CSI Interfaces (0.5mm pitch 30-pin FPC connector)
• Supports MYIR’s MY-CAM004M and MY-CAM005M MIPI Camera Modules
• 1x 3.5mm Audio Interface
• 1x Speaker Interface
• 2x Extension Interfaces (2.54mm pitch 2x 20-pin expansion connector)
• RPI Interface (GPIO/I2C/UART/SPI/CAN, compatible with Raspberry Pi standard 40-pin extension interface)
• MiFAN Interface (GPIO/I2C/UART/SPI/USB2.0)

The MY-ICEB Expansion Board (for MYD-LR3576J-GK)

• 1x Power Input (Phoenix connector)
• 2x Buttons (RESET, USER)
• 2x LEDs (1x RUN LED, 1x USR LED)
• 1x RS232 Serial Port
• 2x RS485 Serial Ports
• 2x CAN Interfaces
• 3x USB2.0 ports (Type-A)
• 1x M.2 Socket for a USB-based 4G LTE Module
• 1x SIM Card Slot
• 2x Extension interfaces (2.54mm pitch 2x 20-pin connector)
• RPI interface (GPIO/I2C/UART/SPI/CAN)
• MiFAN interface (GPIO/I2C/UART/SPI/USB/PWM)

OS Support

• Linux 6.1
• Debian 12

Hardware Specification

The RK3562 and RK3562J processors are high-performance, low-power solutions from Rockchip, designed for industrial automation and consumer electronics. The RK3562 supports a working temperature range from 0 to 70 degrees Celsius, whereas the RK3562J supports -40 to 85 degrees Celsius.

Both processors are equipped with several embedded hardware engines to optimize performance for high-end applications. They feature a built-in NPU that supports hybrid operations with INT4/INT8/INT16/FP16 data types. Moreover, they offer strong compatibility with various frameworks, including TensorFlow, MXNet, PyTorch, and Caffe, facilitating easy conversion of network models.They support nearly full-format H.264 decoding at 1080p@60fps, H.265 decoding at 4K@30fps, and H.264 encoding at 1080p@60fps. Additionally, they include a high-quality JPEG encoder and decoder. The processors come with an embedded 3D GPU that ensures complete compatibility with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1. A special 2D hardware engine is also included to maximize display performance and ensure smooth operation.

They are suitable for next-generation smart power devices, industrial Internet of Things (IoT) devices, industrial control equipment, industrial robots, digital signage, touch all-in-one machines, engineering machinery, rail transit, and other advanced industrial applications.

Software Features

The MYC-YR3562 SOM supports for Linux and Debian OS, and is furnished with comprehensive software packages. To facilitate clients in accelerating their projects, the kernel and numerous peripheral drivers are provided in source code format. The following is a concise overview of the software's key features:
