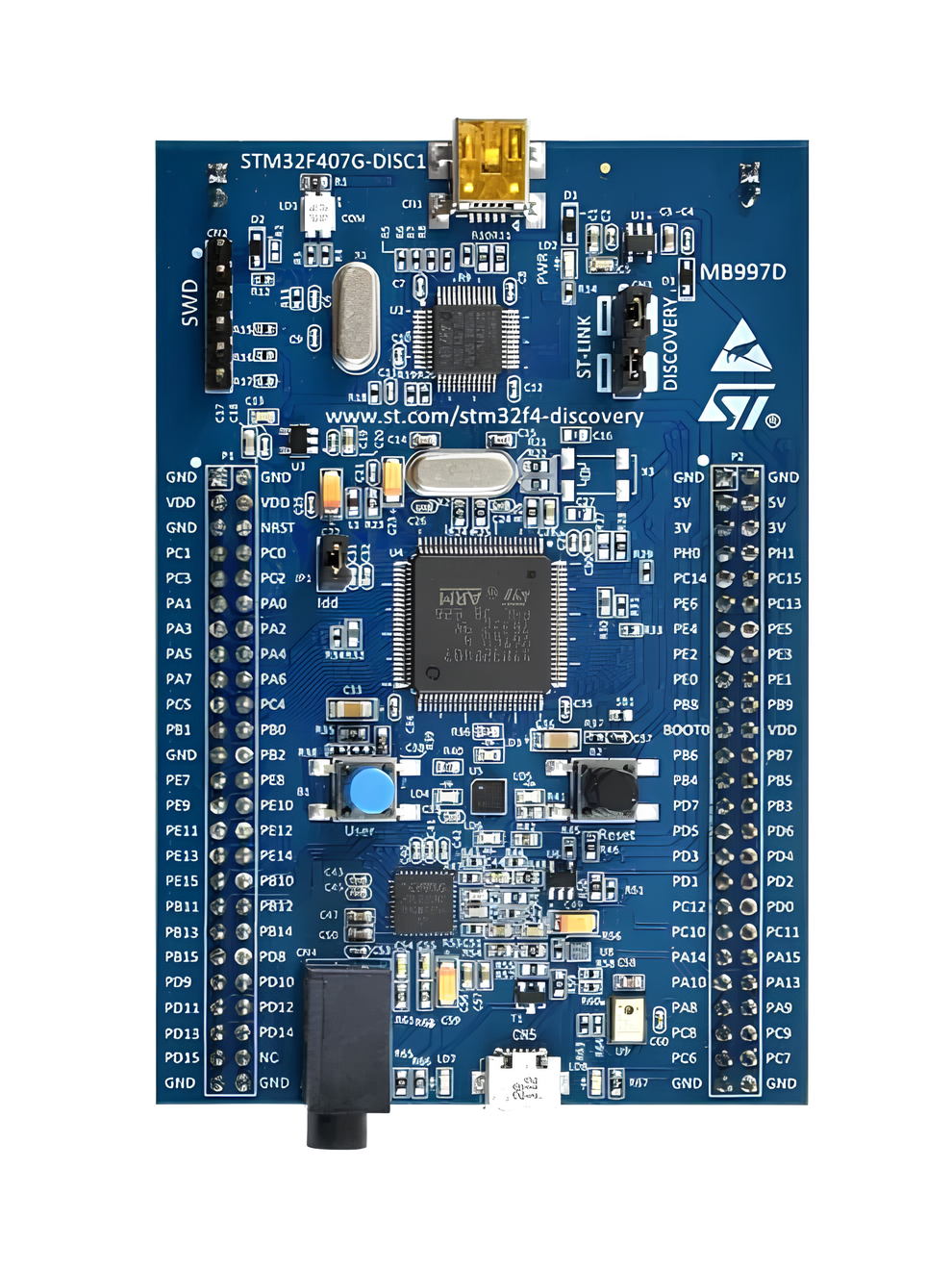

STM32F407G-DISC1 STM32F4 Discovery Geliştirme Kartı (Orijinal Ürün)



FEATURES



•STM32F407VGT6 microcontroller featuring 32-bit ARM Cortex®-M4 with FPU core, 1-Mbyte Flash memory, 192-Kbyte RAM in an LQFP100 package • On-board ST-LINK/V2 on STM32F4DISCOVERY or ST-LINK/V2-A on STM32F407G-DISC1 • ARM® mbed™ -enabled (http://mbed.org) with ST-LINK/V2-A only • USB ST-LINK with re-enumeration capability and three different interfaces: – Virtual com port (with ST-LINK/V2-A only) – Mass storage (with ST-LINK/V2-A only) – Debug port • Board power supply: through USB bus or from an external 5 V supply voltage • External application power supply: 3 V and 5 V • LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer • MP45DT02 ST MEMS audio sensor omni-directional digital microphone • CS43L22 audio DAC with integrated class D speaker driver • Eight LEDs: – LD1 (red/green) for USB communication – LD2 (red) for 3.3 V power on – Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue) – 2 USB OTG LEDs LD7 (green) VBUS and LD8 (red) over-current • Two push buttons (user and reset) • USB OTG FS with micro-AB connector • Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing • Comprehensive free software including a variety of examples, part of STM32CubeF4 package or STSW-STM32068 for legacy standard libraries usage



SYSTEM REQUIREMENTS

• Windows® OS (XP, 7, 8)  • USB type A to Mini-B cable





DEVELOPMENT TOOLCHAINS

IAR® EWARM (IAR Embedded Workbench®) Keil® MDK-ARM™ GCC-based IDEs (free AC6: SW4STM32, Atollic® TrueSTUDIO®,...) ARM® mbed™ online
