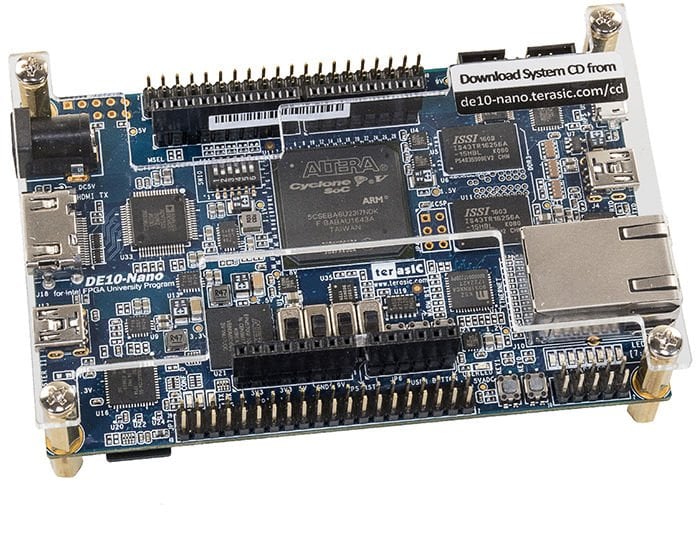

The DE10-Nano Development Kit presents a robust hardware design platform built around the Intel System-on-Chip (SoC) FPGA, which combines the latest dual-core Cortex-A9 embedded cores with industry-leading programmable logic for ultimate design flexibility. Users can now leverage the power of tremendous re-configurability paired with a high-performance, low-power processor system. Altera’s SoC integrates an ARM-based hard processor system (HPS) consisting of processor, peripherals and memory interfaces tied seamlessly with the FPGA fabric using a high-bandwidth interconnect backbone. The DE10-Nano development board is equipped with high-speed DDR3 memory, analog to digital capabilities, Ethernet networking, and much more that promise many exciting applications.

The DE10-Nano Development Kit contains all the tools needed to use the board in conjunction with a computer that runs the Microsoft Windows XP or later.

Specification

The DE10-Nano board has many features that allow users to implement a wide range of designed circuits, from simple circuits to various multimedia projects.

The following hardware is provided on the board:

FPGA Device

Intel Cyclone® V SE 5CSEBA6U23I7 device (110K LEs)
Serial configuration device – EPCS64 (revision B2 or later)
USB-Blaster II onboard for programming; JTAG Mode
HDMI TX, compatible with DVI 1.0 and HDCP v1.4
2 push-buttons
4 slide switches
8 green user LEDs
Three 50MHz clock sources from the clock generator
Two 40-pin expansion headers
One Arduino expansion header (Uno R3 compatibility), can be connected with Arduino shields
One 10-pin Analog input expansion header (shared with Arduino Analog input)
A/D converter, 4-pin SPI interface with FPGA

* If the specification of memory device in Quick Start Guide and official website is discordant, refer to DE10-Nano website as the sole stardard.

HPS (Hard Processor System)

800MHz Dual-core ARM Cortex-A9 processor
1GB DDR3 SDRAM (32-bit data bus)
1 Gigabit Ethernet PHY with RJ45 connector
USB OTG Port, USB Micro-AB connector
Micro SD card socket
Accelerometer (I2C interface + interrupt)
UART to USB, USB Mini-B connector
Warm reset button and cold reset button
One user button and one user LED
LTC 2x7 expansion header

Connectivity

Connect LT24
Connect Arduino
Connect MTL2
Connect D8M
Connect D5M
Connect LTC2607 (AD/DA Daughter Card)

Block Diagram of the DE10-Nano Board

DE10-Nano Kit Board Board Top-view

DE10-Nano Kit Bottom-view

Package Include

DE10-Nano Board
DE10-Nano Quick Start Guide
Type A to Mini-B USB Cable x1
Type A to Micro-B USB Cable x1
Power DC Adapter (5V)
microSD card (installed)
Four Silicon Footstands

DE10-Nano Angstrom Image

Title	Size	Date
Release notes	107(KB)	2019-06-25
Authentication signature for binary images	10(KB)	2019-06-25
Authentication script	4(KB)	2019-06-25
License manifest	5,409(KB)	2019-06-25
SDCard image		2019-06-25
All source code required to rebuild the Linux* image		2019-06-25

Documents

Title	Version	Size	Date
DE10-Nano User Manual (rev. E Hardware)	2.6	10,445(KB)	2025-02-20
How to distinguish the board revision and what's differents.		342(KB)	2024-01-31
Getting Started Guide	1.4	3,159(KB)	2020-10-30
DE10-Nano FAQ	1	250(KB)	2020-04-07
DE10-Nano User Manual (rev. B2/C Hardware)	2.2	4,406(KB)	2020-01-02
DE10-Nano User Manual (rev. A/B Hardware)	1.8	5,983(KB)	2018-02-01
Quick Start Guide(rev. A/B Hardware)		10,727(KB)	2017-11-02
Quick Start Guide(rev. B2/C Hardware)		1,574(KB)	2017-11-01
Product Brief		2,851(KB)	2017-08-05
My First FPGA		3,812(KB)	2017-08-01
My First HPS		1,234(KB)	2017-07-31
DE10-Nano Control Panel		18,361(KB)	2017-07-30
DE10-Nano OpenCV		2,291(KB)	2017-07-29
Bluetooth SPP		1,948(KB)	2017-07-28
DE10-Nano Schematic		1,421(KB)	2017-07-27

AWS Greengrass Certification Resources

Title	Version	Size	Date	Download
SD Card Image for AWS IoT Greengrass	1		2020-03-11
Getting Started Guide for AWS IoT Greengrass	1	1,351(KB)	2020-03-11

Azure IoT Resources

Title	Version	Size	Date	Download
SD Card Image for Azure IoT			2022-03-04
Getting Started Guide for Azure IoT			2022-03-04

2018 InnovateFPGA Champions Design

Title	Version	Size	Date
Grand Champion : Flex Force Smart Glove		16,100(KB)	2019-05-26
Silver Award : Real-time HDR video		5,590(KB)	2019-05-25
Bronze Award : PipeCNN	2		2019-05-24

CD-ROM

Title	Version	Date
DE10-Nano CD-ROM (rev. E Hardware)	1.0.0	2025-02-20
DE10-Nano CD-ROM (rev. B2 Hardware)	1.2.6	2023-08-09
DE10-Nano CD-ROM (rev. C Hardware)	1.3.9	2023-08-09
DE10-Nano CD-ROM (rev. A/B Hardware)	1.2.4	2018-02-01
Network Socket Example Design	1.0.0	2017-10-30
Quartus Download	16.0	2016-12-22

Daughter Card Demonstrations

Title	Version	Date
D8M		2018-01-26
RFS	1.0.0	2017-06-22
SMK		2017-02-24
Arduino Shield		2017-02-23

Linux BSP (Board Support Package): MicroSD Card Image

Title	Version	Date
Linux Console (kernel 4.5)	1.3	2018-03-15
Linux Xfce Desktop (kernel 4.1.33-ltsi-altera)	1.0	2017-04-11
Linux LXDE Desktop (kernel 4.5)	1.1	2017-04-10

BSP (Board Support Package) for Intel FPGA SDK OpenCL 16.1

Title	Version	Size	Date
DE10-Nano OpenCL BSP (.zip)	1.0		2017-05-05
DE10-Nano OpenCL BSP (.tar.gz)	1.0		2017-05-05
DE10-Nano OpenCL User Manual	1.0	1,494(KB)	2017-05-04

BSP (Board Support Package) for Intel FPGA SDK OpenCL 18.1

Title	Version	Size	Date
DE10-Nano OpenCL User Manual	2.0	1,621(KB)	2019-01-03
DE10-Nano OpenCL BSP (.tar.gz)	1.0		2019-01-02
DE10-Nano OpenCL BSP (.zip)	1.0		2019-01-02

Please note that all the source codes are provided "as-is". For further support or modification, please contact Terasic Support and your request will be transferred to Terasic Design Service.
More resources about IP and Dev. Kit are available on Intel User Forums.
