The USRP B206mini-i is a flexible and compact platform that is ideal for both hobbyist and OEM applications. It is designed by NI Ettus USRP and provides a wide frequency range (70 MHz to 6 GHz) and a user-programmable, industrial-grade AMD Spartan-6 XC6SLX150 FPGA. The similar NI Ettus USRP B200mini is limited to a narrower operating temperature range and utilizes a smaller FPGA.

The RF front end uses the Analog Devices AD9364 RFIC transceiver with 56 MHz of instantaneous bandwidth. The board is bus-powered by a high-speed USB 3.0 connection for streaming data to the host computer. The USRP B206mini-i also includes connectors for GPIO, JTAG, and synchronization with a 10 MHz clock reference or PPS time reference input signal.

Experimentation with Low-cost SDR

Experiment with the USRP B206mini-i across a wide range of applications including: FM and TV broadcast, cellular, GPS, WiFi, ISM, and more. Users can immediately begin prototyping in GNU Radio and participate in the open-source SDR community. Full support by the USRP Hardware Driver™ (UHD) software allows seamless code reuse from existing designs, compatibility with open-source applications like HDSDR and OpenBTS, and an upgrade path to industry-ready USRP systems to meet application requirements.

Features

Features
RF Specifications	Channels: 1 TX, 1 RX Frequency range: 70 MHz to 6 GHz Instantaneous Bandwidth: Up to 56 MHz IIP3 (at typical NF): -20 dBm Power Output: >10 dBm Receive Noise Figure: <8 dB
Conversion Performance and Clocks	ADC Sample Rate (Max.): 61.44 MS/s ADC Resolution: 12 bits DAC Sample Rate (Max.): 61.44 MS/s DAC Resolution: 12 bits Host Sample Rate (16b): 61.44 MS/s Frequency Accuracy: +/-2.0 ppm
Power	USB Power: 5V
Physical	Dimensions: 83.3 x 50.8 x 8.4 mm Weight: 24.0 g
Environment	Operating Temp. Range: 0 - 45 °C (extended to -40 - 75 °C with enclosure kit) USRP Hardware Driver 3.9.2 (or later) GNU Radio
Synchronization	10 MHz clock reference PPS time reference
Product Compliance	HTC: 8471809000 ECCN: 3A992.a

What's Included

(P/N: 6002-410-047) Board Only
USRP B206mini-i
USB 3.0 cable

(P/N: 6002-410-046) with Enclosure Bundle
USRP B206mini-i
Enclosure Kit (Comes disassembled. Requires assembly)
USB 3.0 Cable

Software

The hardware is conveniently accessible through the USRP Hardware Driver (UHD). UHD provides both a C/C++ and Python API that supports all USRP products and enables users to efficiently develop applications then seamlessly transition designs between platforms as requirements expand. UHD also offers cross-platform support for multiple industry standard development environments and frameworks, including RFNoC, LabVIEW, and MATLAB/Simulink. To ensure you have no restrictions on how you use UHD, it is available on Linux, Windows, and Mac OS. Do you prefer graphical programming? Try out GNU Radio, a free and open-source software development framework offering a graphical design approach.

Quickly find what you need to get started and reduce mean time to blink.

All product support including documentation, projects, and reference material can be accessed through Ettus resources.

Ettus Knowledge Base

Quick Links

Reference Manual Specifications Specifications (PDF) Ettus Support

Ürün Tipi

Board

Bu ürüne ilk yorumu siz yapın!

Yorum Yaz

Bu ürünün fiyat bilgisi, resim, ürün açıklamalarında ve diğer konularda yetersiz gördüğünüz noktaları öneri formunu kullanarak tarafımıza iletebilirsiniz.
Görüş ve önerileriniz için teşekkür ederiz.

Ürün resmi kalitesiz, bozuk veya görüntülenemiyor.

Ürün açıklamasında eksik bilgiler bulunuyor.

Ürün bilgilerinde hatalar bulunuyor.

Ürün fiyatı diğer sitelerden daha pahalı.

Bu ürüne benzer farklı alternatifler olmalı.

Ettus USRP B206mini-i

Ettus USRP B206mini-i, geniş bir frekans aralığında yüksek performanslı bir yazılım tanımlı radyo (SDR) platformudur.

USRP B206mini-i, yüksek kazançlı bir RF alıcısına, iki kanallı bir RF vericiye ve bir FPGA'ya sahiptir. Bu, onu RF sinyallerini yakalamak, işlemek ve üretmek için ideal hale getirir.

USRP B206mini-i, aşağıdakiler dahil olmak üzere çeşitli uygulamalarda kullanılabilir:

-Radyo frekansı (RF) sinyallerinin analiz edilmesi ve deneysel tasarımı
-Mobil iletişim sistemlerinin test edilmesi ve doğrulanması
-Uydu iletişim sistemlerinin test edilmesi ve doğrulanması
-Radyo navigasyon sistemlerinin test edilmesi ve doğrulanması
-Güvenlik uygulamaları

USRP B206mini-i, aşağıdaki avantajları sunar:

-Yüksek performans
-Esneklik
-Açık kaynaklı

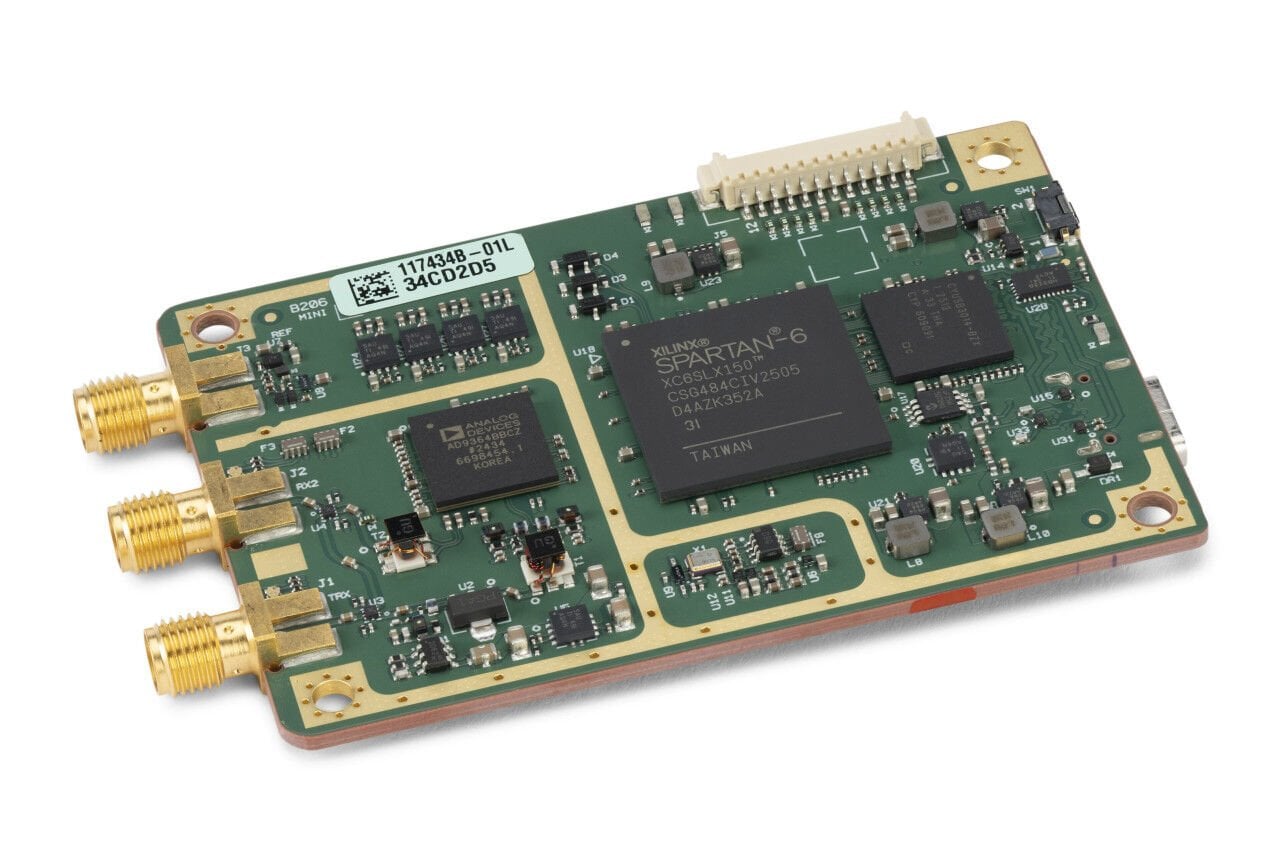

USRP B206mini-i SDR/Cognitive Radio
