Z-turn IO Cape
The Z-turn IO Cape is an IO extension board designed specially for MYIR's Z-turn Board V2 which is a Xilinx Zynq-based Single Board Computer. User can bring out many peripherals and signals like ADC, GPIO, LCD and camera interfaces to help you explore more functions from the Z-turn Board V2.
Z-turn IO Cape
Specification
| Item | Description |
|---|---|
| I/O | I/O Function, reused with LCD pins, can be used as GPIO if LCD unused |
| LCD/Touch | Can connect with MYIR's 4.3-inch and 7-inch LCD Modules |
| Camera | J2 interface |
| Pmod | 3 x Pmod interfaces, can connect with some common Pmod modules |
| ADC | 1 x ADC (can be differential signals), extends 4 IOs of PS unit |
| Dimensions | 102mm x 88mm |
| Power Input | 5V/1A, 3.3V/1A |
| PS IO | 3.3V |
| PL IO | 3.3V |
| ADC Input | 0~1.8V |

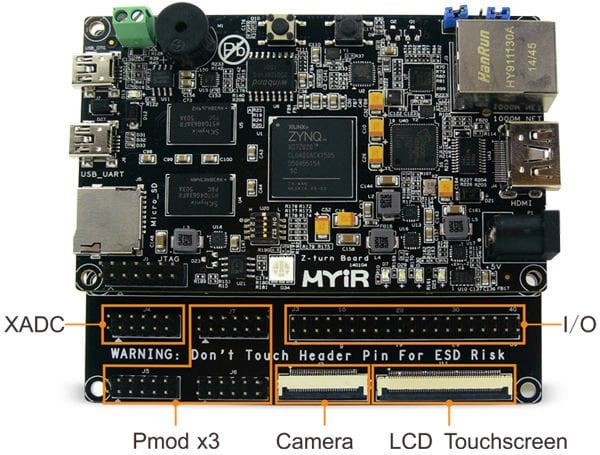

Z-turn Board mounted onto Z-turn IO Cape
Dimensions of Z-turn IO Cape
