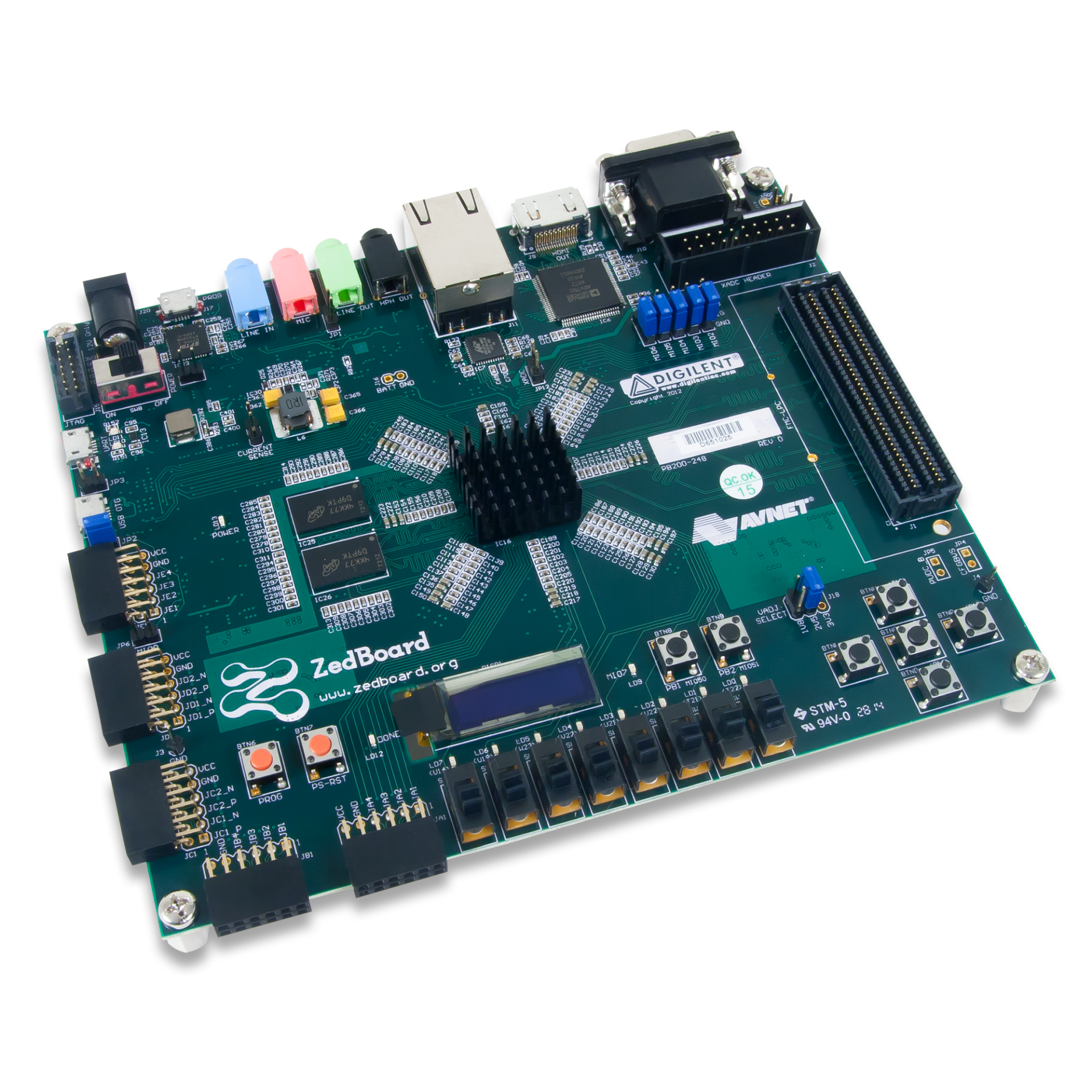

ZedBoard Zynq-7000 ARM/FPGA SoC Geliştirme Kartı
ZedBoard Zynq™-7000 ARM/FPGA SoC Development Board
Zynq™-7000 SoC Geliştirme Kartı
The ZedBoard is a low-cost development board for the Xilinx Zynq-7000 all programmable SoC (APSoC), and a perfect option for those looking to buy a Xilinx FPGA board. Check out our blog post What is Zynq? for more information on Zynq FPGA technology.
Take advantage of the Xilinx Zynq-7000 APSoCs tightly coupled ARM® processing system and 7-Series programmable logic to create unique and powerful designs with the ZedBoard. This ARM board contains everything necessary to create a Linux®, Android®, Windows®, or other OS/RTOS based design. Additionally, several expansion connectors expose the processing system and programmable logic I/Os for easy user access.
Target applications for this Xilinx 7 series FPGA board include video processing, reconfigurable computing, motor control, software acceleration, Linux/Android/RTOS development, exploring RISC processors (ARM), and general Zynq-7000 AP SoC prototyping.
The ZedBoard is supported by Xilinx's Vivado Design Suite, including the free WebPACK version.
ZedBoard Zynq-7000 ARM/FPGA SoC Development Board Features
- Xilinx Zynq-7000 AP SoC XC7Z020-CLG484
- Dual-core ARM Cortex™-A9 processor
- 512 MB DDR3
- 256 MB Quad-SPI Flash
- On-board USB-JTAG Programming
- 10/100/1000 Ethernet
- USB OTG 2.0 and USB-UART
- Analog Devices ADAU1761 SigmaDSP® Stereo, Low Power, 96 kHz, 24-Bit Audio Codec
- Analog Devices ADV7511 High Performance 225 MHz HDMI Transmitter (1080p HDMI, 8-bit VGA, 128x32 OLED)
- PS & PL I/O expansion (FMC, Pmod, XADC)
Example Applications
- Real-time video streaming and processing
- Signal processing for aerospace systems
- Interactive gaming platforms with high-performance computing
- Data encryption and decryption for secure communications
- AI-driven recommendation systems
- Autonomous robotics for industrial automation
- High-speed data packet analysis in networking
- IoT-based smart home automation systems
- Wireless sensor network protocols development
- DC motor control in robotic applications
- Optimizing software performance using hardware acceleration
- Embedded Linux and RTOS for mobile devices
- Teaching embedded systems and digital design in universities
- ZedBoard 7020 baseboard
- 12 V AC/DC power supply
- 4 GB SD card
- Micro-USB cable
- USB Adapter: Male Micro-B to Female Standard-A
Example Projects
- Zedboard OLED Demo
- Zedboard DMA Audio Demo
- ZedBoard FMC Pcam Adapter One to Four Camera Demo
- ZedBoard FMC Pcam Adapter Two Camera Demo
- Xilinx FPGA-HDMI1.4: You Must Know First !
- A Stereo Vision System Powered by Zynq SoC with Complete RTL
- ZedBoard HDMI Tutorial
- Video Mixer feature implementation on Zynq FPGA
- Ethernet Packet Inspection
- ZedBoard FMC HDMI Sobel Tutorial
- Video Processing with Digilent FMC-HDMI Module - Part 1
| Kart Türü | : | SoC |
| İşlemci | : | Zynq-7000 |
