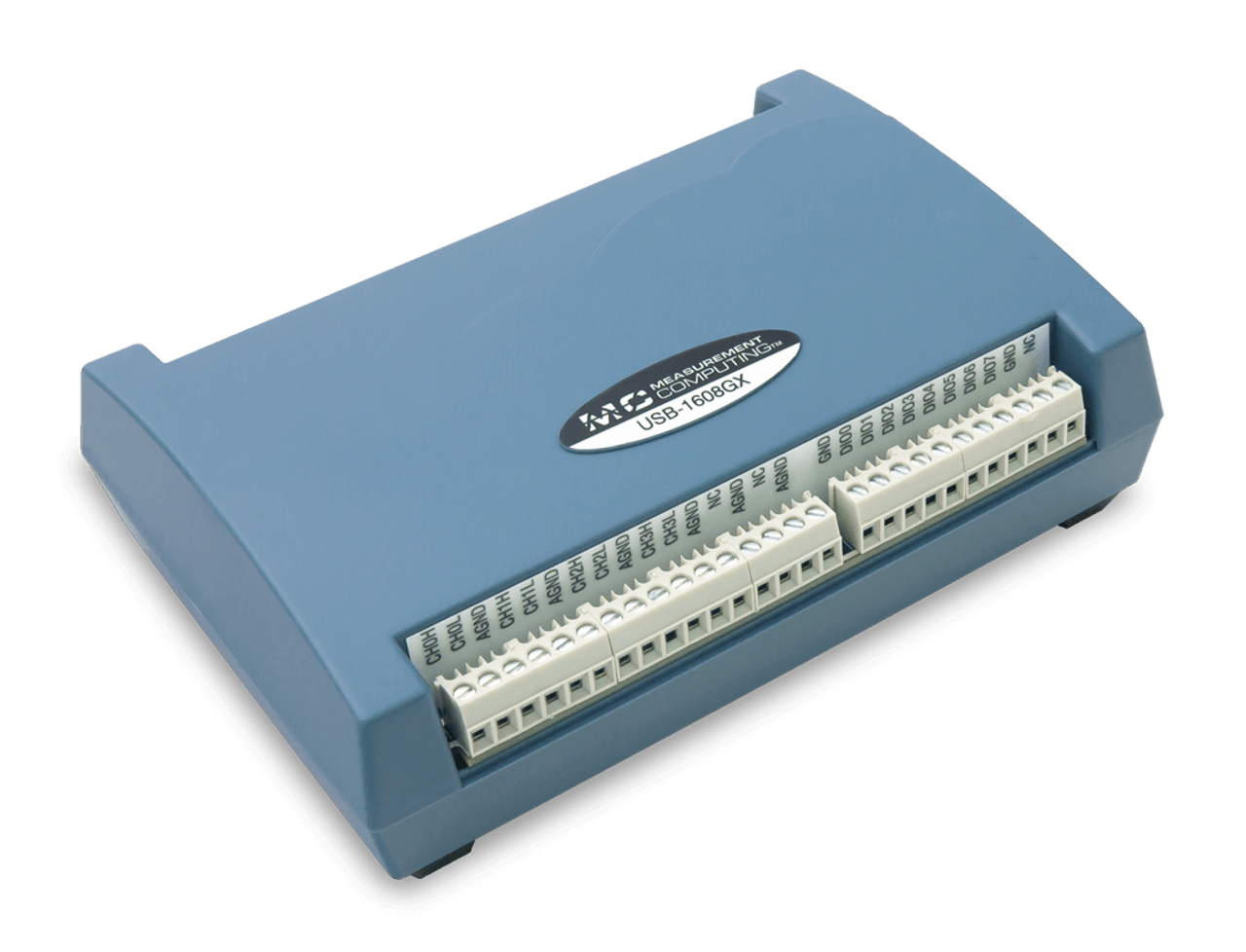

MCC USB-1608G Series: USB-1608GX USB DAQ Devices

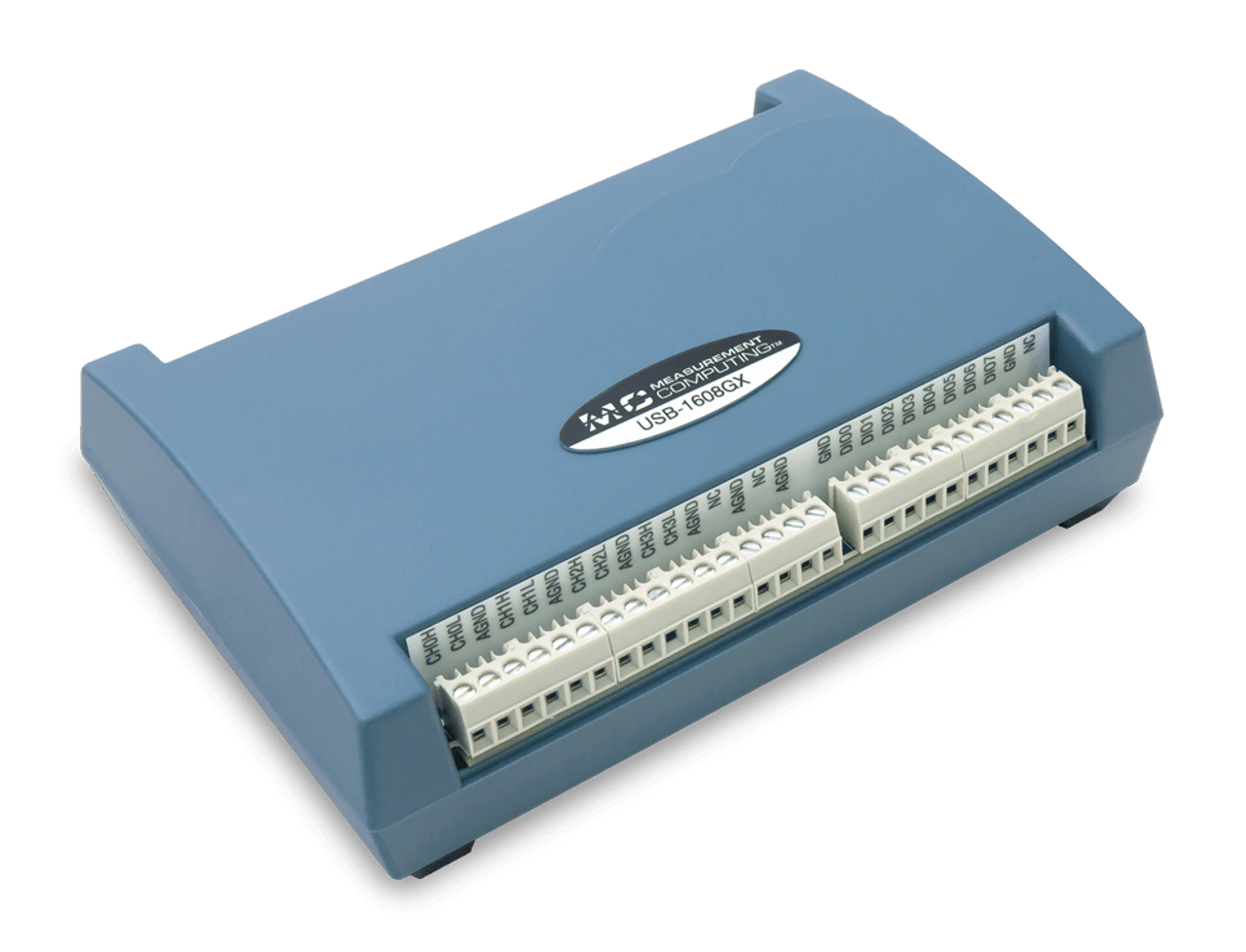

MCC USB-1608GX
16-bit, 500 kS/s Multifunction DAQ Device
Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.
The USB-1608GX and USB-1608GX-2AO are multifunction, high-speed, analog and digital I/O USB devices. Each device offers up to 16 SE/8 DIFF analog inputs, eight digital I/O channels, two counter inputs, and one timer output. The USB-1608GX-2AO features two, 16-bit analog output channels with DAC rates up to 500 kS/s.
Software support includes free DAQami software for out-of-the-box data logging, viewing of data, and generating signals. Also included are drivers for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, Linux®, and Python™.
Features
- 16 SE/8 DIFF analog inputs
- 16-bit resolution
- 500 kS/s sample rate
- ±10 V, ±5 V, ±2 V, ±1 V input ranges
- Two analog outputs (USB-1608GX-2AO only)
- Eight digital I/O
- Two counter inputs
- One timer output
- No external power required
What's Included
- USB-1608GX
- USB cable
- Printed insert: DAQami Quick Start
- MCC packaging assembly/foam, etc.
Prioritizing on ease of use and flexibility, MCC offers out-of-the-box software plus drivers for the most popular programming languages and applications.
Out-of-the-box software includes DAQami for data logging, visualization, and signal generation. For a more full-featured and customizable experience, DASYLab® provides real-time analysis and control, plus the ability to create custom applications without programming.
For maximum customization, drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.
Out of the Box Software: DAQami - Included
Data Acquisition Companion Software for Acquiring Data and Generating Signals
DAQami is an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. DAQami is ideal for interactive testing, data logging, and developing applications that run for minutes or days.
Supported Operating Systems: Windows® 10/8/7/Vista®, 32-bit or 64-bit English, Chinese, and German language support.
Custom Applications without Programming: DASYLab® - Optional
Programming and Driver Support - Included
Quick Links
| Application | : | Multifunction |
| Interface | : | USB |
| Input Resulotion | : | 16-Bit |
| Analog Input | : | 12-24 |
| Analog Output | : | 0 |
| Sampling Rate | : | 1Khz-100Khz |
| Sampling Tape | : | Mutiplexed |
| Digital IO | : | 8 |
Data Acquisition (Veri Toplama) Nedir?
Fiziksel olarak var olan analog veya dijital verilerin ölçüldüğü ve bu verilerin bilgisayar sistemlerine aktarıldığı bir teknoloji sürecidir. MCC Data Acquisition ürünleri, endüstriyel kontrol sistemleri ve ölçüm uygulamalarında güvenilir ve etkili veri toplama çözümleri sunar. Data Acquisition Systems, sensörler aracılığıyla elde edilen çeşitli veri türlerini (sıcaklık, basınç, voltaj vb.) işleyerek, endüstri, laboratuvar ve araştırma alanlarındaki kullanıcıların ihtiyaçlarına uygun ölçümler yapma imkanı sağlar.
Measurement Computing'in veri toplama çözümlerinin avantajları nelerdir?
Measurement Computing'in veri toplama çözümleri çok çeşitli uygulamalar ve arayüzler sağlar. İster akım, gerilim, sıcaklık, gerinim veya dijital sinyalleri ölçüyor olun, MCC, benzersiz uygulamanız için hızlı ve özelleştirilebilir bir veri toplama çözümü için beraberindeki yazılım ve sürücülerle birlikte yüksek kaliteli donanım sunar.
MCC Ürünleri: Veri Toplama ve Veri Kaydediciler
MCC, kullanımı kolay, entegrasyonu kolay ve desteklenmesi kolay veri toplama çözümlerinin lider tedarikçisidir. MCC, tüm beceri düzeylerine uyacak kapsamlı yazılım desteğine sahip USB, Ethernet, Raspberry Pi ve bağımsız ürünler sunar.
