MYC-CZU3EG/4EV/5EV-V2 CPU Module
MYC-CZU3EG/4EV/5EV-V2 CPU Module

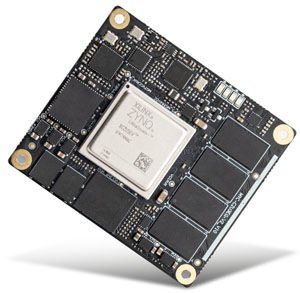

The MYC-CZU3EG/4EV/5EV-V2 CPU Module is a powerful MPSoC System-on-Module (SoM) based on Xilinx Zynq UltraScale+ ZU3EG or ZU4EV or ZU5EV which features a 1.2 GHz quad-core ARM Cortex-A53 64-bit application processor, a 600MHz dual-core real-time ARM Cortex-R5 processor, a Mali400 embedded GPU and rich FPGA fabric. It has 4GB DDR4, 4GB eMMC and 128MB QSPI Flash default memory configuration on board as well as integrated Ethernet PHY, USB PHY and Power Module to provide control and processing capabilities as a minimum embedded system. It offers easy access to signals carried to or from the MPSoC through two Samtec 0.5mm pitch 160-pin Razor Beam High-Speed headers. It is ready to run PetaLinux OS and comes with detailed documentations and software package.
MYC-CZU3EG/4EV/5EV-V2 CPU Module
- Xilinx Zynq UltraScale+ ZU3EG / ZU4EV / ZU5EV MPSoC based on 1.2 GHz Quad Arm Cortex-A53 and 600MHz Dual Cortex-R5 Cores
- 4GB DDR4 SDRAM (64 bit, 2400MHz)
- 4GB eMMC Flash, 128MB QSPI Flash
- Gigabit Ethernet PHY, USB PHY
- Power Module, Clock Generator
- Two Samtec 0.5mm pitch 160-pin Razor Beam High-Speed Headers
- Ready-to-Run PetaLinux
- Supports Xilinx Vitis Software Development Platform
Developers can simply design their own base board using the MYC-CZU3EG/4EV/5EV-V2 as the embedded controller which can help save time and reduce cost. MYIR has a reference base board design for customer evaluation and prototype. The whole development board MYD-CZU3EG/4EV/5EV-V2 takes full features of the Zynq UltraScale+ XCZU3EG-1SFVC784 / XCZU4EV-1SFVC784 / XCZU5EV-2SFVC784 MPSoC to have explored a robust set of peripherals for a wide variety of applications including the Internet, cloud computing, Data center, Machine Vision, Military facilities, Flight navigation and other embedded applications.
MYD-CZU3EG/4EV/5EV-V2 Development Board (delivered with active heatsink on CPU Module by default)
Features
Mechanical Parameters
- Dimensions: 60.00 mm x 52.00 mm
- PCB Layers: 12-layer design
- Power supply: 3.3V
- Working temp.: 0~70 Celsius (commercial grade, MYC-CZU3EG-V2), -40~85 Celsius (industrial grade, MYC-CZU4EV/5EV-V2)
MPSoC
- Xilinx Zynq UltraScale+ XCZU3EG-1SFVC784 / XCZU4EV-1SFVC784 / XCZU5EV-2SFVC784 MPSoC
- 1.2GHz 64 bit Quad-core ARM® Cortex™-A53
- 600MHz Dual-core ARM® Cortex™-R5 processor
- ARM Mali™-400MP2 Graphics Processor
- 16nm FinFET+ FPGA fabric
Memory
- 4GB DDR4 SDRAM (64bit, 2400MHz)
- 4GB eMMC Flash
- 128MB QSPI Flash
Peripherals and Signals Routed to Pins
- Gigabit Ethernet PHY
- USB PHY
- Power Module
- Clock Generator
- Watchdog
- Four LEDs
- One yellow LED for ERROR_STATUS indicator (indicate a secure lockdown state)
- One yellow LED for ERROR_OUT indicator (Asserted for accidental power loss, hardware error)
- One green LED for PS_Done indicator (indicate the PL configuration is done)
- One green LED for PS_INIT indicator (indicate the PS is initialized after a power-on reset)
- Two Samtec 0.5mm pitch 160-pin Razor Beam High-Speed headers bring out
- 4 PS GTR transceivers along with 2 GTR reference clock inputs
- PS JTAG interface, USB 2.0 interface, Gigabit Ethernet interface and etc.
- 4 PL GTH transceivers along with 1 GTH reference clock input (only for Zynq UltraScale+ EV Devices)
- 156 user PL I/O pins
OS Support
- PetaLinux 2020.1
Order Part No and Packing List
| Item | Part No. | Included |
|---|---|---|
|
MYC-CZU3EG-V2 CPU Module |
MYC-CZU3EG-V2-4E4D-1200-C |
- One MYC-CZU3EG-V2 CPU Module |
|
MYC-CZU4EV-V2 CPU Module |
MYC-CZU4EV-V2-4E4D-1200-I-FAN |
- One MYC-CZU4EV-V2 CPU Module |
|
MYC-CZU5EV-V2 CPU Module |
MYC-CZU5EV-V2-4E4D-1200-I-FAN |
- One MYC-CZU5EV-V2 CPU Module |
|
MYD-CZU3EG-V2 Development Board |
MYD-CZU3EG-V2-4E4D-1200-C |
- One MYD-CZU3EG/4EV/5EV-V2 Board |
|
MYD-CZU4EV-V2 Development Board |
MYD-CZU4EV-V2-4E4D-1200-C |
|
|
MYD-CZU4EV-V2 Development Board |
MYD-CZU5EV-V2-4E4D-1200-C |
|
|
MY-TFT070RV2 |
7-inch LCD Module with resistive touch screen |
|
|
MY-TFT070CV2 |
7-inch LCD Module with capacitive touch screen |
Hardware Features
Zynq® UltraScale+™ MPSoC devices provide 64-bit processor scalability while combining real-time control with soft and hard engines for graphics, video, waveform, and packet processing. Built on a common real-time processor and programmable logic equipped platform, three distinct variants include dual application processor (CG) devices, quad application processor and GPU (EG) devices, and video codec (EV) devices.
The Zynq UltraScale+ family provides footprint compatibility to enable users to migrate designs from one device to another. Any two packages with the same footprint identifier code (last letter and number sequence) are footprint compatible. MYIR is using the XCZU3EG-1SFVC784 MPSoC for MYD-CZU3EG-V2 Development Board, XCZU4EV-1SFVC784 MPSoC for MYD-CZU4EV-V2 Development Board, XCZU5EV-2SFVC784 MPSoC for MYD-CZU5EV-V2 Development Board by default, the C784 package covers the widest footprint compatibilities that enable users to select devices among CG, EG and EV.
MYIR may also supply the MYC-CZU3EG-V2 CPU Modules with XCZU2CG, XCZU3CG, XCZU4EV or XCZU5EV MPSoC as options. The main features for the MPSoC devices are summarized as below.
|
Device |
XCZU2CG |
XCZU3CG |
XCZU3EG |
XCZU4EV |
XCZU5EV |
|
Logic cells (k) |
103 |
154 |
154 |
192 |
256 |
|
CLB Flip-Flops (K) |
94 |
141 |
141 |
176 |
234 |
|
CLB LUTs (K) |
47 |
71 |
71 |
88 |
117 |
|
Block RAM (Mb) |
5.3 |
7.6 |
7.6 |
4.5 |
5.1 |
|
UltraRAM (Mb) |
- |
- |
- |
13.5 |
18.0 |
|
DSP Slices |
240 |
360 |
360 |
728 |
1,248 |
|
GTX transceivers |
PS-GTR4x (6Gb/s) |
PS-GTR4x (6Gb/s) |
PS-GTR4x (6Gb/s) |
PS-GTR4x (6Gb/s), GTH4x (16.3Gb/s) |
PS-GTR4x (6Gb/s), GTH4x (16.3Gb/s) |
|
Processor Units |
|||||
|
Application Processor Unit |
Dual-core ARM® Cortex™-A53 MPCore™ up to 1.3GHz |
Quad-core ARM® Cortex™-A53 MPCore™ up to 1.5GHz |
|||
|
Memory w/ECC |
L1 Cache 32KB I / D per core, L2 Cache 1MB, on-chip Memory 256KB |
||||
|
Real-Time Processor Unit |
Dual-core ARM Cortex-R5 MPCore™ up to 600MHz |
||||
|
Memory w/ECC |
L1 Cache 32KB I / D per core, Tightly Coupled Memory 128KB per core |
||||
|
Graphics Processing Unit |
- |
- |
Mali™-400 MP2 up to 667MHz |
||
|
Video Codec |
- |
- |
- |
H.264 / H.265 |
|
|
Memory L2 Cache |
64KB |
||||
|
External Memory, Connectivity, Integrated Block Functionality |
|||||
|
Dynamic Memory Interface |
x32/x64: DDR4, LPDDR4, DDR3, DDR3L, LPDDR3 with ECC |
||||
|
Static Memory Interfaces |
NAND, 2x Quad-SPI |
||||
|
High-Speed Connectivity |
PCIe® Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet |
||||
|
General Connectivity |
2 x USB 2.0, 2 x SD/SDIO, 2 x UART, 2 x CAN 2.0B, 2 x I2C, 2 x SPI, 4 x 32b GPIO |
||||
|
Power Management |
Full / Low / PL / Battery Power Domains |
||||
|
Security |
RSA, AES, and SHA |
||||
|
AMS - System Monitor |
10-bit, 1MSPS – Temperature and Voltage Monitor |
||||
Software Features
The MYC-CZU3EG/4EV/5EV-V2 CPU Module is preloaded with PetaLinux 2020.1. MYIR provides software package in product disk along with the goods delivery. The software package features as below:
| Item | Features | Description | Remark |
|---|---|---|---|
| Cross compiler | gcc 9.2.0 | gcc version 9.2.0 | |
| gcc 5.2.1 | gcc version 5.2.1 (Linaro GCC5.2) | ||
| Boot program | BOOT.BIN | First boot program including FSBL, u-boot2020.01 | Source code provided |
| Linux Kernel | Linux 5.4.0 | Customized kernel for MYD-CZU3EG/4EV/5EV-V2 Board | Source code provided |
| Drivers | SFP & SFP+ | SFP driver and SFP+ driver (only for MYD-CZU4EV/5EV-V2) | Source code provided |
| USB Host | USB2.0/USB3.0 Host driver | Source code provided | |
| Ethernet | Gigabit Ethernet driver | Source code provided | |
| MMC/SD/TF | MMC/SD/TF card driver | Source code provided | |
| QSPI Flash | QSPI Flash driver | Source code provided | |
| PCIE | PCIE network card driver | Source code provided | |
| CAN | CAN driver | Source code provided | |
| LCD Controller | LCD driver | Source code provided | |
| DP Controller | DP Display driver | Source code provided | |
| HDMI | HDMI (SII902X chip) driver | Source code provided | |
| Button | Button driver | Source code provided | |
| UART | UART driver | Source code provided | |
| I2C | I2C driver | Source code provided | |
| LED | LED driver | Source code provided | |
| GPIO | GPIO driver | Source code provided | |
| QSPI | QSPI Flash MT25QU512ABB driver | Source code provided | |
| Touch Screen | TSC2007 resistive touch screen driver | Source code provided | |
| FT5X0X capacitive touch screen driver | Source code provided | ||
| SATA | SATA HD driver | Source code provided | |
| Watch dog | Watch dog driver | Source code provided | |
| Example | Including button, LED, CAN, Socket examples | ||
| File System | Ramdisk | Ramdisk system image | File System |
| Rootfs.tar | Buildroot, including QT | Source code provided | |
| Petalinux | Petalinux2020.1 |
Supports Xilinx development tools for PetaLinux 2020.1 and provides complete |
|
