MY-LCD70TP-C 7 inch LCD Module
Stok Kodu : MY-LCD70TP-C
5.043,06 TL
* 947,34 TL den başlayan taksitlerle!
MY-LCD43TP 4.3 inch LCD Module

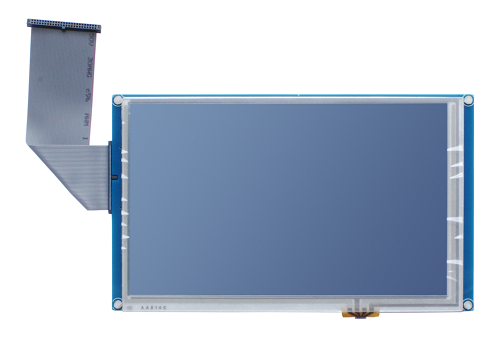

The MY-LCD70TP-C 7 inch LCD Module is designed to work with MYIR's ARM development boards and single board computers. It has one 7 inch TFT LCD including capacitive touch screen with 800 by 480 pixels resolution. MYIR has designed a special LCD adapter board to drive the display and enable touch features. One 50-pin 1.27mm pitch IDC cable and one 50-pin 0.5mm pitch FPC cable are provided for user selection to connect the LCD adapter board with MYIR's development board or single board computer. User can experience the high-performance of MYIR's board products through touching and watching the MY-LCD70TP-C.
LCD Specification
| Item | Parameters | Unit |
|---|---|---|
| LCD Size | 7 inch (Diagonal) | |
| Driver element | a-Si TFT active matrix | |
| Resolution | 800 x 3 (RGB) x 480 pixel | pixel |
| Display mode | Normally white, Transmissive | |
| Dot pitch | 0.0642 (W) x 0.1790 (H) mm | mm |
| Active area | 154.08 (H) x 85.92 (H) mm | mm |
| Module size | 164.9 (W) x 100.0 (H) x 5.7 (D) mm | mm |
| Surface treatment | Anti-Glare | |
| Color arrangement | RGB-stripe | |
| Interface | Digital | |
| Weight | 130g |
Signals Routed to 50-pin LCD Connector
