MY-LVDS070C 7 inch LCD Module
Stok Kodu : MY-LVDS070C
5.781,69 TL
* 1.086,09 TL den başlayan taksitlerle!
MY-LVDS070C 7 inch LCD Module

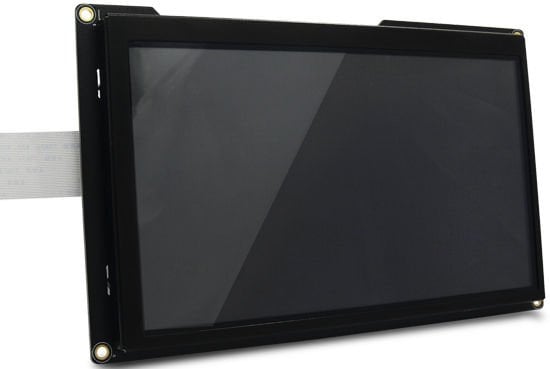

The MY-LVDS070C 7 inch LCD Module is designed to work with MYIR's MYD-JX8MX development board (NXP i.MX 8M based) and MYD-C8MMX development board (NXP i.MX 8M Mini based). It has one LVDS interface based 7-inch TFT LCD with capacitive touch screen. The display resolution is up to 1024 by 600 pixels. MYIR has designed a special LCD adapter board to drive the display and enable touch features. One FPC cable is also provided to connect the 40-pin 0.5mm pitch LCD interface on the adapter board with MYIR's development board. User can experience the high-performance of MYIR's board products through touching and watching the MY-LVDS070C display.
LCD Specification
| Item | Parameters | Unit |
|---|---|---|
| LCD display size | 7 inch (Diagonal) | |
| LCD adapter board size | 180 (W) x 100 (H) mm | mm |
| Driver element | a-Si TFT active matrix | |
| Resolution | 1024 × 3(RGB) × 600 pixel | pixel |
| Display mode | Normally White, Transmissive | |
| Interface | LVDS | |
| Pixel pitch | 0.1506 (W) × 0.1432 (H) mm | mm |
| Active area | 154.2144 (W) x 85.92 (H) mm | mm |
| Module size | 164.9 (W) x100 (H) x 5.7 (D) mm | mm |
| Backlight Brightness | 400-500cd/m2 | |
| Surface treatment | Hard Coating | |
| Color arrangement | RGB-stripe | |
| Working temp. | -10 to 60 Celsius Degree | |
| Storage temp. | -30 to 80 Celsius Degree | |
| Power consumption | 300mA |
Signals Routed to 40-pin LCD Connector
| Pin | IO |
|---|---|
| 1 | NC |
| 2 | +5V |
| 3 | +5V |
| 4 | NC |
| 5 | NC |
| 6 | NC |
| 7 | GND |
| 8 | RXIN0- |
| 9 | RXIN0+ |
| 10 | GND |
| 11 | RXIN1- |
| 12 | RXIN1+ |
| 13 | GND |
| 14 | RXIN2- |
| 15 | RXIN2+ |
| 16 | GND |
| 17 | RXCLK- |
| 18 | RXCLK+ |
| 19 | GND |
| 20 | RXIN3- |
| 21 | RXIN3+ |
| 22 | GND |
| 23 | NC |
| 24 | NC |
| 25 | GND |
| 26 | NC |
| 27 | BL_CTR |
| 28 | TP_CS |
| 29 | NC |
| 30 | GND |
| 31 | NC |
| 32 | NC |
| 33 | TP_MOSI |
| 34 | TP_SCK |
| 35 | NC |
| 36 | TP_PEN |
| 37 | NC |
| 38 | NC |
| 39 | NC |
| 40 | NC |
